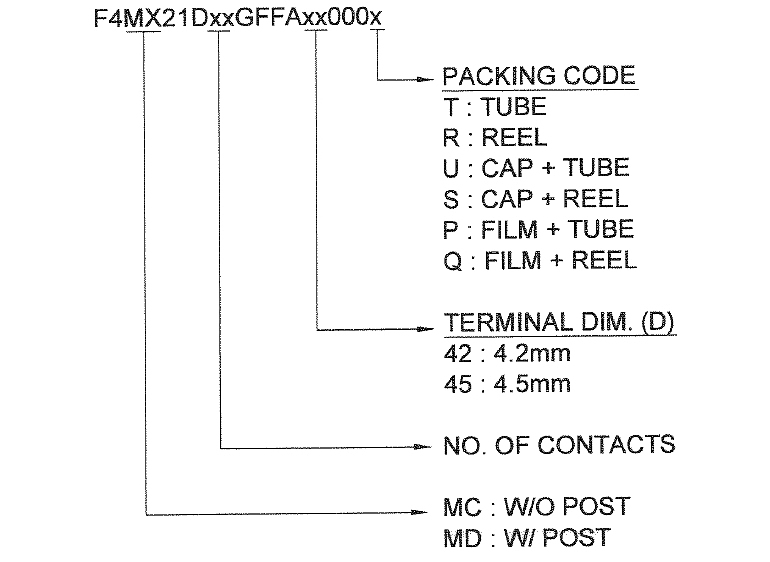

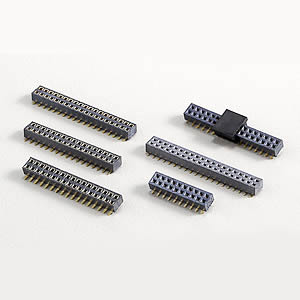

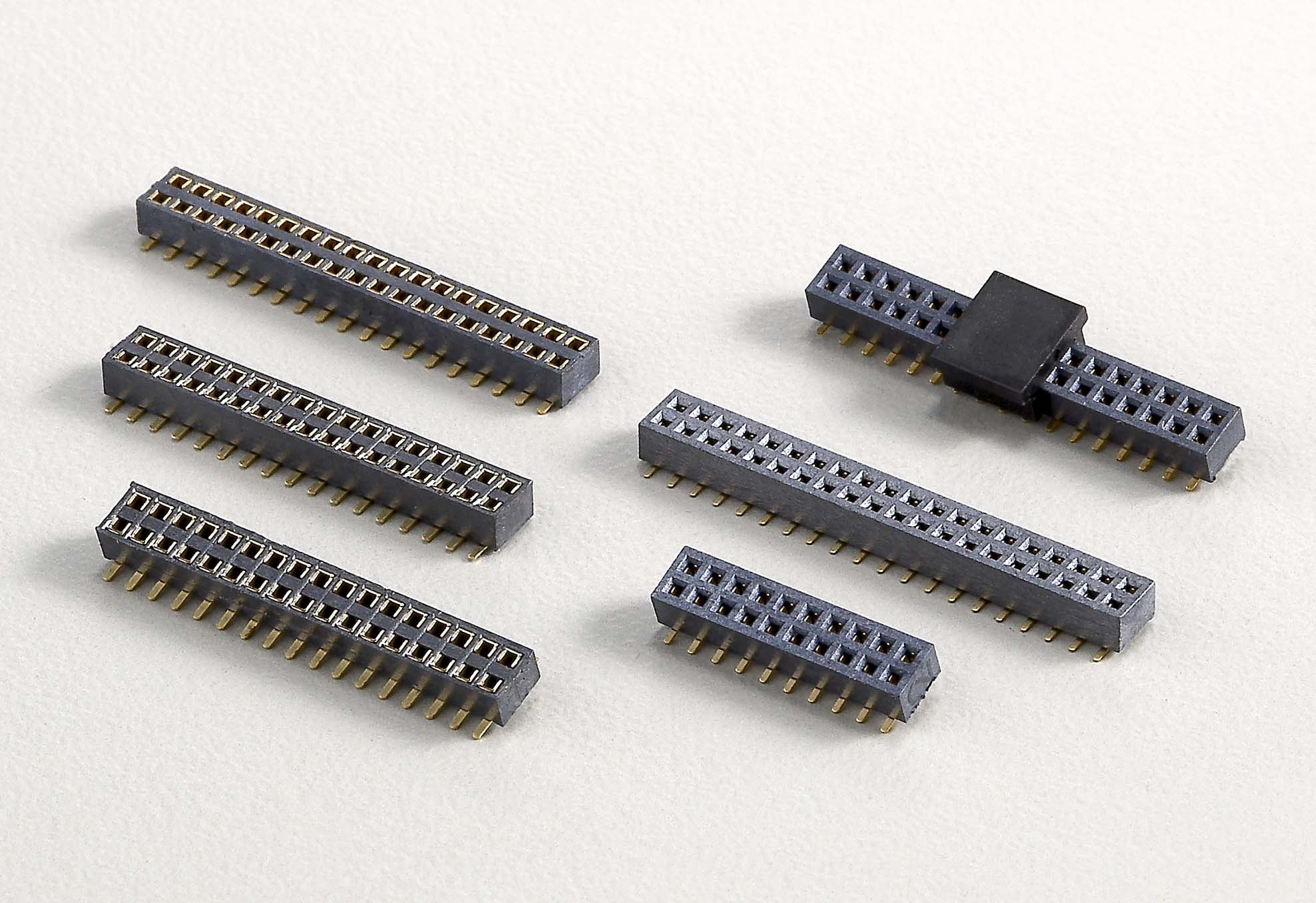

• F4MX21DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 2.1mm
    F4MX21DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 2.1mm

    F4MX21DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 2.1mm

    Specifications:

    Current & Voltage Rating: 1A & 12Vac max.
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 300V
    Operating Temperature : -40℃~+105℃
    Contact Material : Phosphor Bronze
    Insulator Material : Polyester,UL94V-0(Black),LCP
    Standard : LCP
    Finish : 0.6u" Gold plated
