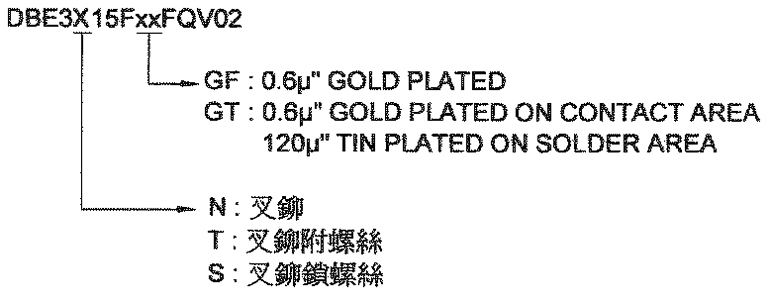

DBE3X15FxxFQV02 D-SUB / SLIM Type

Specifications:

Insulatorlpbt+30% Glass Fiber(Ul,94v-0)
Contact : Phosphor Bronze Or Brass
Contact Plated : Gold Over Nickel
Shell Finish : Stell Nickel Plated
Current Rating : 5amps
Dielectric Voltage : 1000v For One Minute
Insulation Resistance : 100Ωm Min.At 500V DC
Contact Resistance : 15mΩ Max.10ses.
Operating Temperature : -55℃~+105℃
