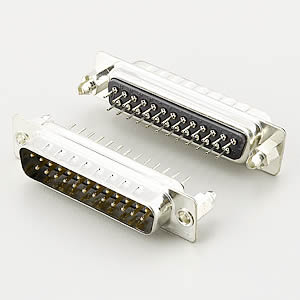

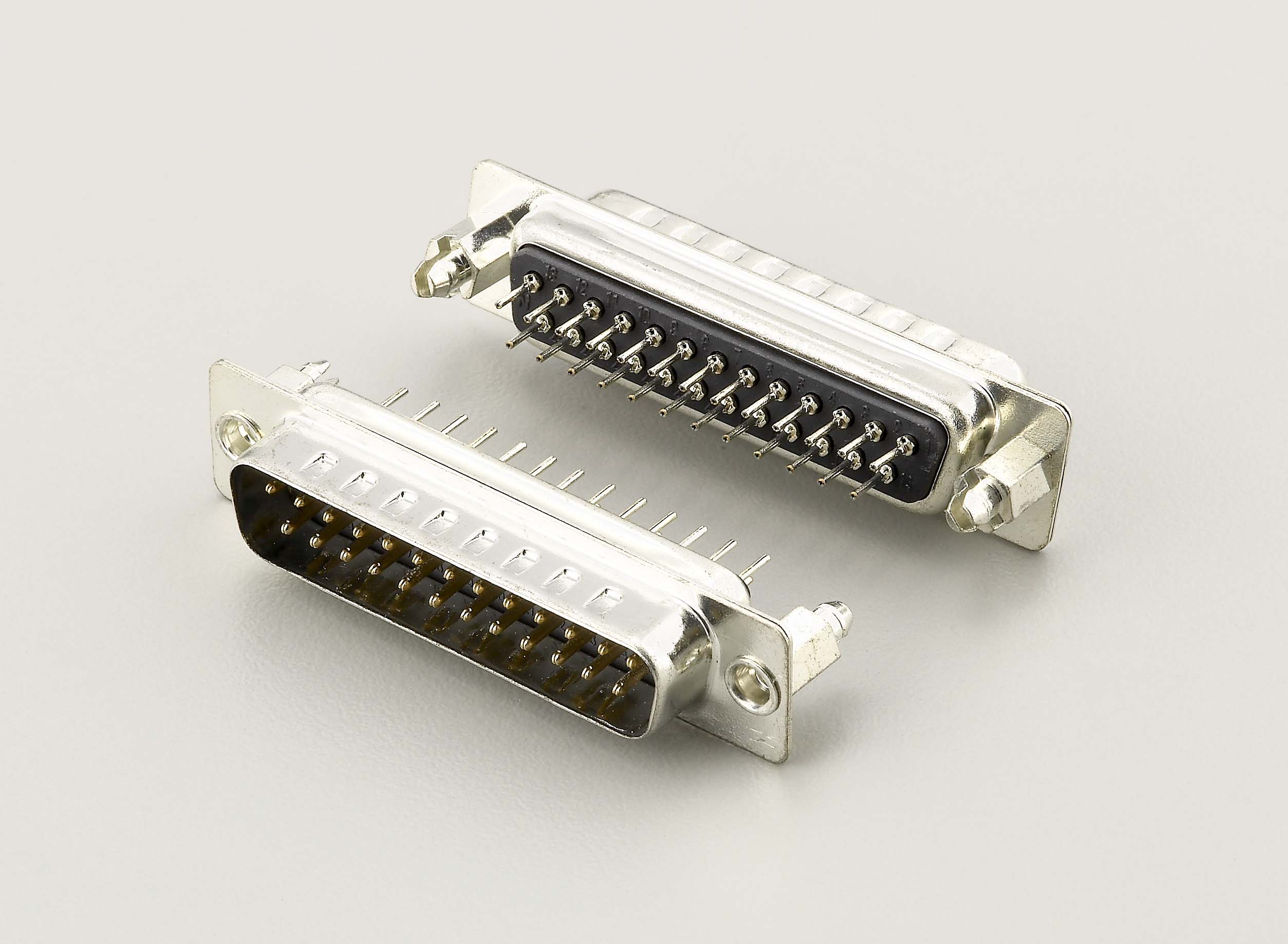

DBS3HxxMGTAQV00 D-SUB / PCB Straight Type

Specifications:

Contact Current Rating: 3 Amperes.(Max)
Dielectric Withstanding Voltage: AC 1000V/60sec.r.m.s.
Insulation Resistance: 500 Megohms Minimum.
Contact Resistance: 20 Milliohms Maximum.
Operating Temperature:-55°C to +105°C.
Contact Insertion Force: 341 g. Maximum.
Contact Separation Force: 21 g. Minimum
Grounding Screw Torque: 3 Kg Minimum.
Contacts: Brass Insulator: PBT UL 94V-0 Rated
Shell: Cold Roller Steel. Grounding Screw: Brass.
Contact: Gold Flash.
Shell: Nickel Plated.
Grounding Screw: Tin/Lead Plated Over Nickel Underplating.
