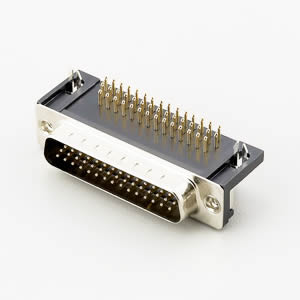

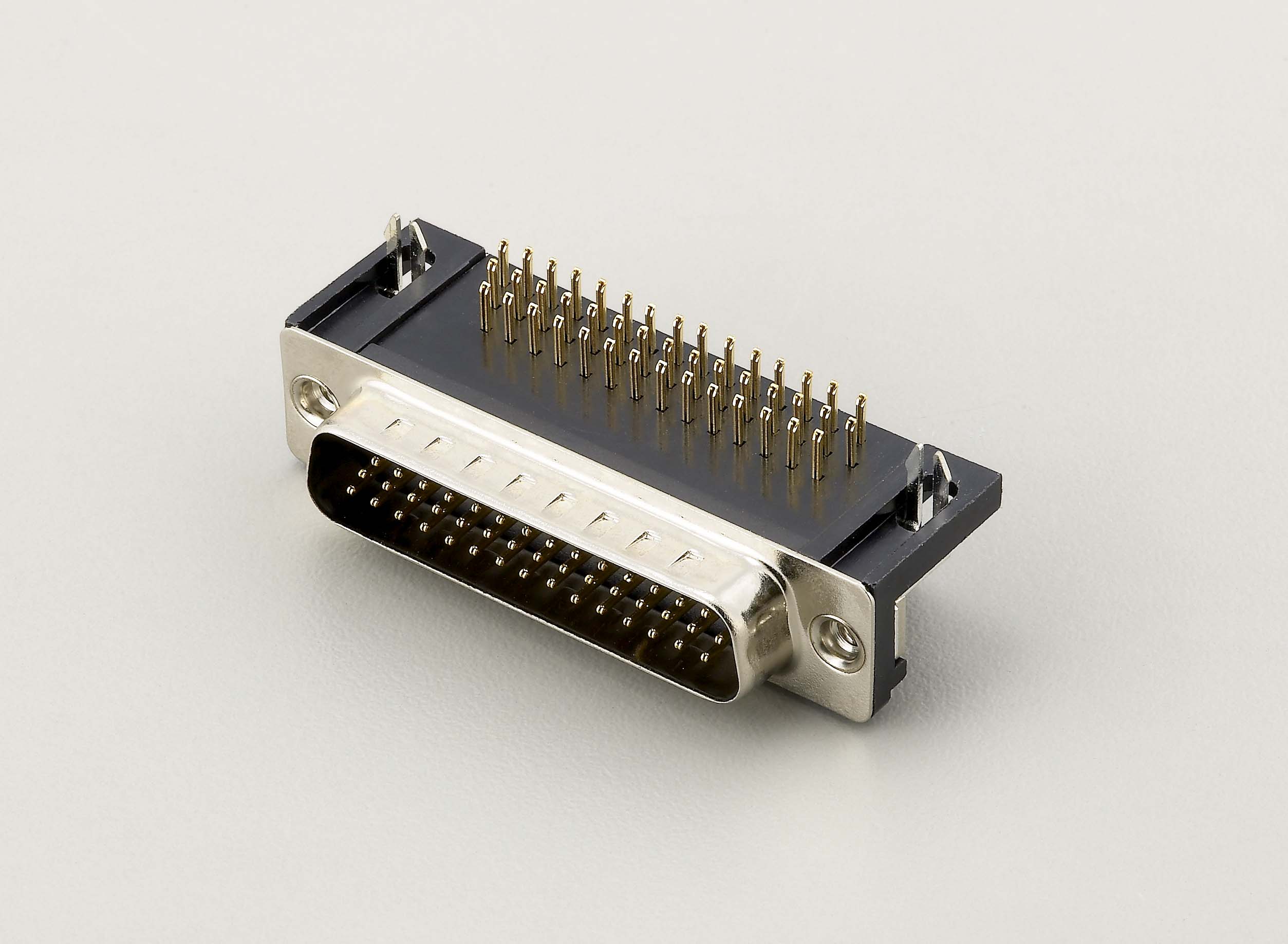

DBR3QxxMGxAQV00 D-SUB / PCB Right Angle

Specifications:

Contact Current Rating : 3 Amperes.
Dielectric Withstanding: AC 1000V R.M.S.
Insulation Resistance : 5000 MΩ Min. at DC 500V.
Contact Resistance: 25 MΩ max.
Operating Temperature: -55° To +105°.
Contacts : Brass
Insulator :P.B.T. UL 94V-0 Rated./ Ny-9t UL94V-0
Shell : Cold Roller Steel.

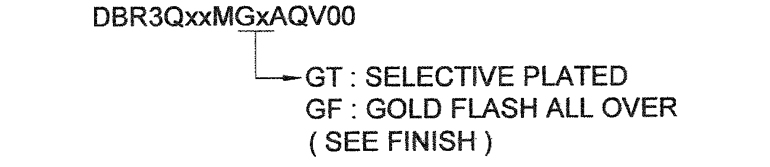

Contact : 0.6u" Gold Plated.
Shell : Nickel Plated.
Solder : 0.6u" Gold Plated Or 120u" Tin Plated
