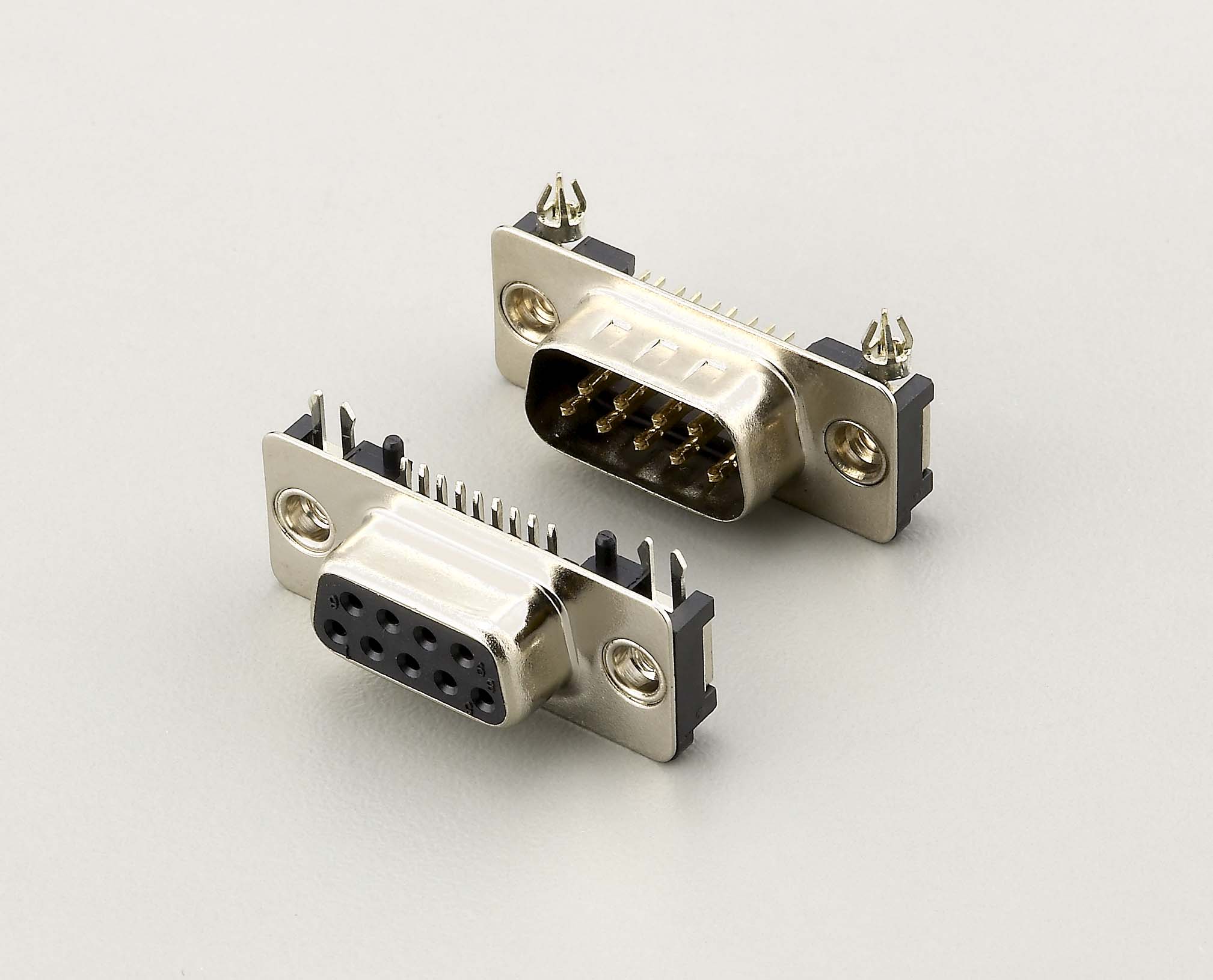

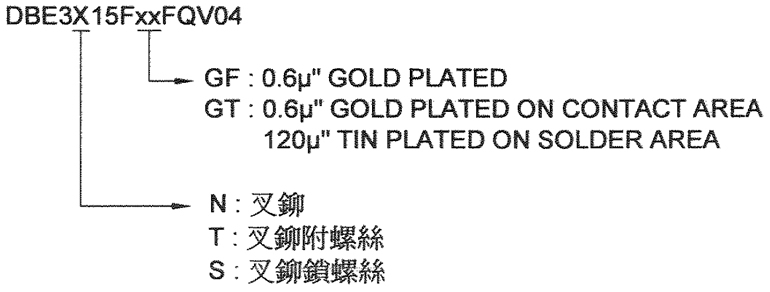

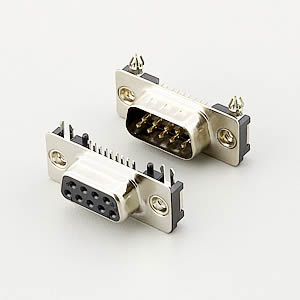

DBE3X15FxxFQV04 D-SUB / SLIM Type

Specifications:

Housing : High Temperature Housing (Ul94v-0 )
Withstands IR And VPR Soldering Methods.
Contacts : Phosphor Bronze.
Plating: Selective Gold Plated.
Current Rating : 1amp
Insulator Resistance : 5000 MΩ Min. At Dc 500v
Contact Resistance: 20 mΩ Max. At Dc 100ma.
Operating Temperature: -40°C~ +105°C
Max Processing Temperature :: 230°C For 30-60 Seconds
