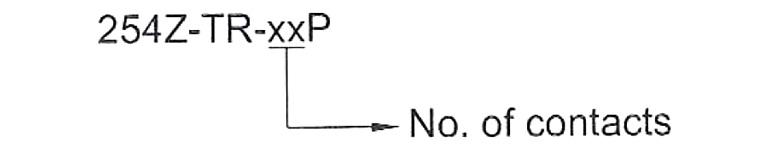

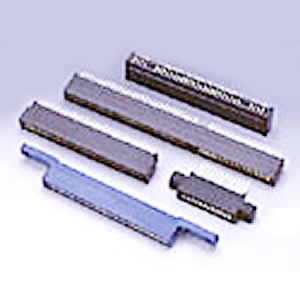

254Z-TR-xxP SLOT Connector

Specifications:

Current Rating : 3A
Insulation Resistance: 5000 MΩ min. at 500Vdc
Contact Resistance : 20 mΩ max.
Dielectric Withstanding : AC 1000V for 1 minute
Operating Temperature: -55°C ~ +105°C
Insertion Force : 340g max. Per Pair
Extraction Force : 28g min. Per Pair
Insulator Material : PBT+G.F., UL 94V-0
Contact Material : Brass
