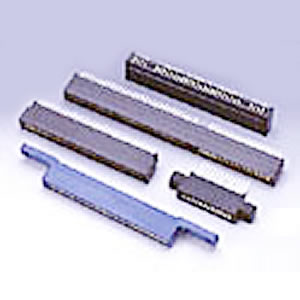

254Z-WR-xxxxx-x SLOT Connector

Specifications:

Dielectric Withstanding Voltage: 1000 VAC Rms.
Current Rating : 3 Amp.
Insulation Resistance : 5000 MΩ Min. At 500 VDC.
Contact Resistance : 20 mΩ Max.
Insertion Force : 340 Grms Max Per Contact Pair.
Withdrawal Force: 28 Grams Min Per Contact Pair.
Insulator : Glass-Reinforced Thermoplastic. UL 94V-O Rated.
Contact: Copper Alloy.
Plating : Contact Area-See Order Information. Soldering Area-Tin Over Nickel.
Temperature Range: -55°C To +85°C
