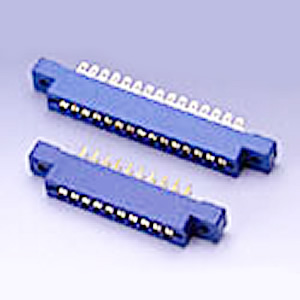

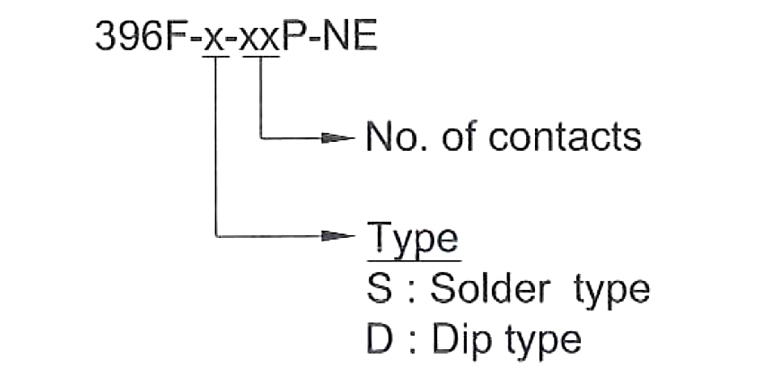

396F-x-xxP-NE SLOT Connector

Specifications:

Current Rating : 3A
Insulation Resistance : 5000 MO min. at 500V DC
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : 500V for 1 minute
Operating Temperature -25°C ~ +85°C
Contact Material : Brass
Insulator Material : PBT + 30% Glass Fiber, UL 94V-0 (Blue)
Finish : Gold plated over Nickel
Packing : Tray
