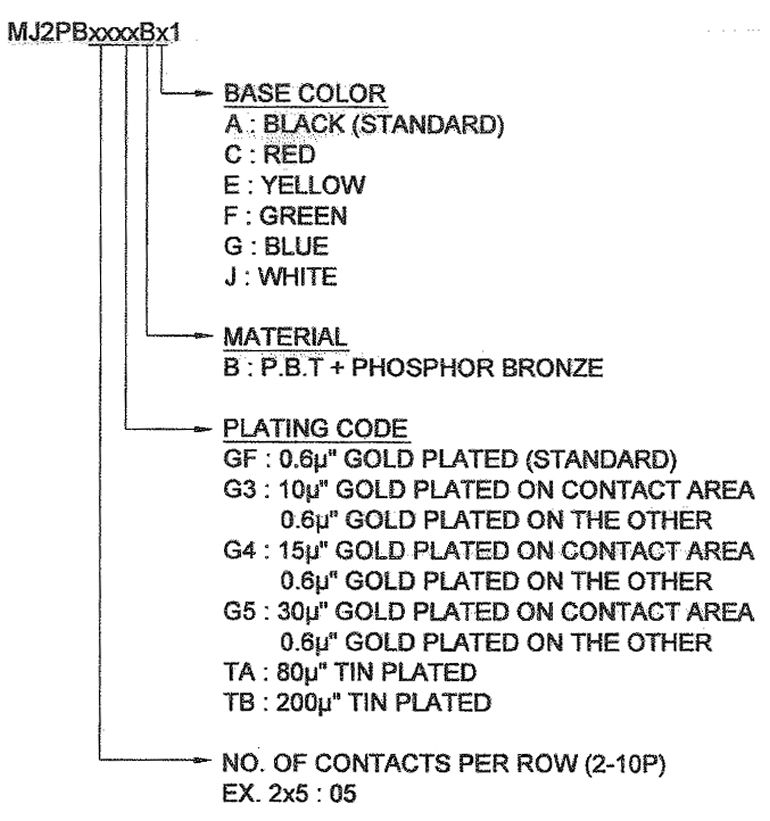

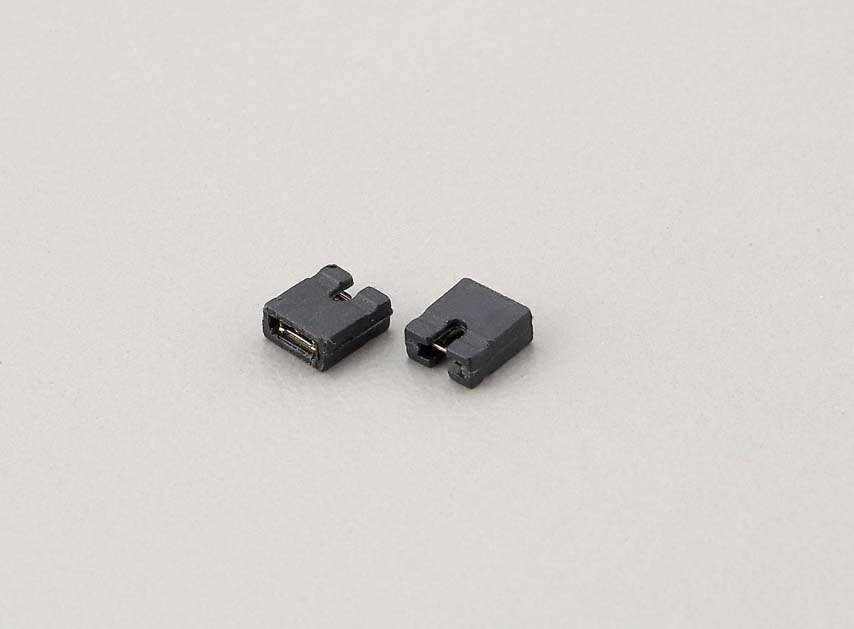

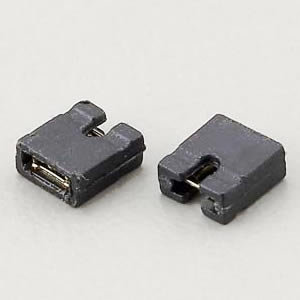

MJ2PBxxxxBx1 Mini Jumper Open Type Parallel Type

Features:

Double Turing Fork Type Contact Guarantees High Reliability 2.00 Mm Pitch Low-Profile Mini Type Match To 0.50mm SQ. Posts

Material:

Insulator : P.B.T.
Contact: Gold Plated
Terminal: Phosphor Bronze

Specifications:

Current Rating: 3 Amperes Max
Contact Resistance: 30 mω Max
Insulator Resistance: 1000 Mω Max
Dielectric Withstanding Voltage: Ac 650 Volts RMS At Sea Leve
