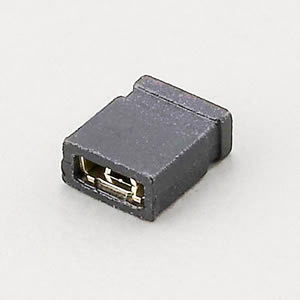

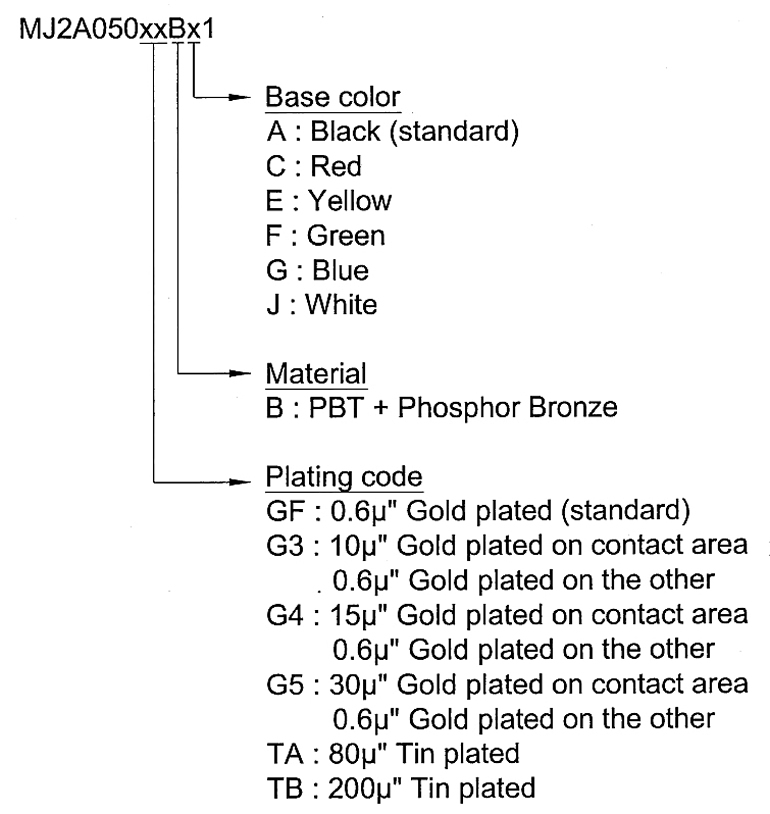

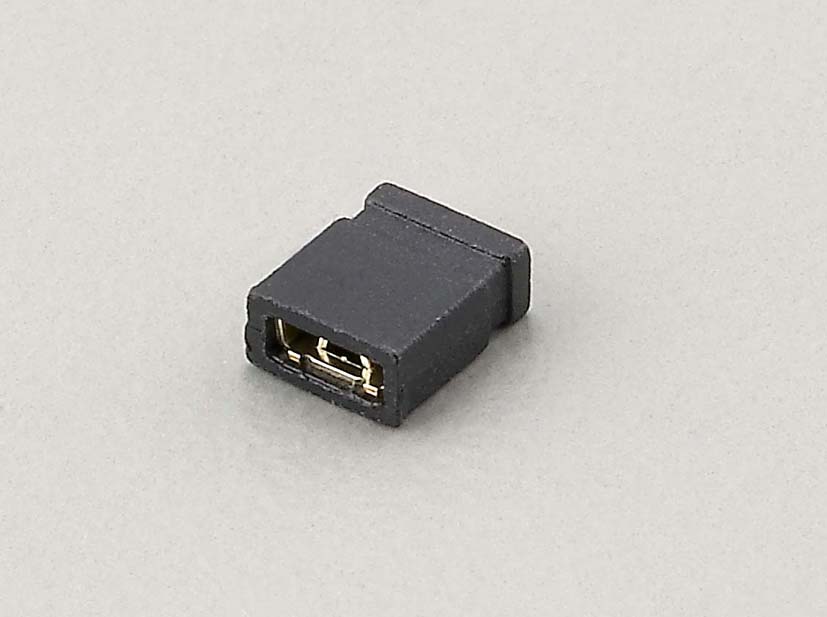

MJ2A050xxBx1 Mini Jumper Close Type

Features:

Double Turing Fork Type Contact Guarantees High Reliability 2.00 Mm Pitch Low-Profile Mini Type Match To 0.50mm SQ. Posts

Material:

Insulator: P.B.T.
Contact: Gold Plated
Terminal: Phosphor Bronze

Specifications:

Current Rating: 3amperes Max
Contact Resistance: 30mω Max
Insulator Resistance: 1000 Mω Max
Dielectric Withstanding Voltage: Ac 650 Volts RMS At Sea Leve
