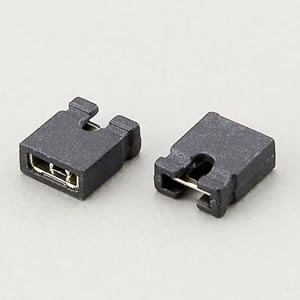

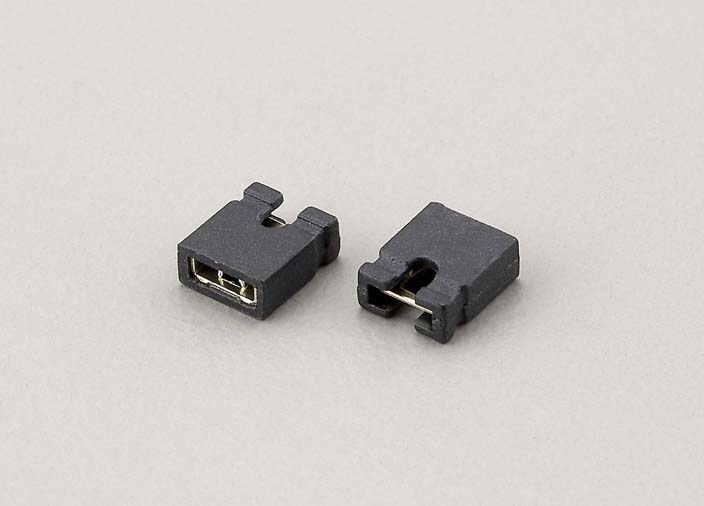

MJ1B080xxBx1 Mini Jumper Open Type

Features:

Double Tuning Fork Type Contact Guarantees High Reliability 2.54 Mm Pitch Low-Profile Mini Type Match To 0.64mm SQ. Posts

Material:

Insulator : PBT

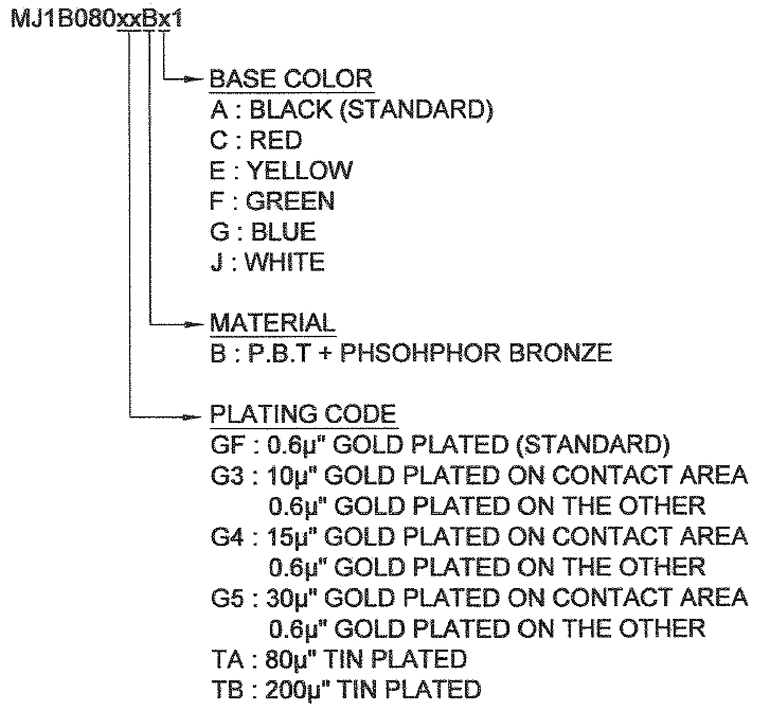

Contact: See Order Information
Terminal: Phosphor Bronze

Specifications:

Current Rating: 3 Amperes Max
Contact Resistance: 30 mω Max
Insulator Resistance: 1000 Mω Max
Dielectric Withstanding Voltage: Ac 650 Volts RMS.
