• Material:
    Pin : Brass, machined, CuZn38b2

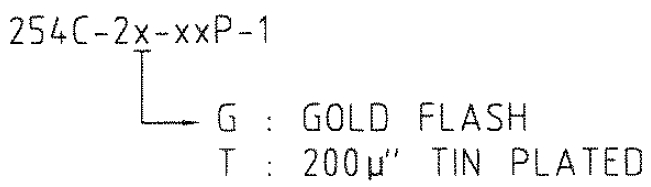

    Plating : Tin. plated : 2um/80u" nickel, Sum/200u" Tin
    Gold plated: 2um/80u" nickel, full gold
    Insulator body (housing) : Polyamide (Glass filled UL94V-0)


    Electrical:
    Current rating : 3 Amps/contact max.
    Insulation resistance >1000MΩ at 100V
    Operating : 60 Veff

    Mechanical:
    Operating temperature .- Gold plated:-55℃ to +125℃
    (Continuous) Tin plated:-40℃ to +109℃
    Soldering temperature : +260℃, 10s max.
