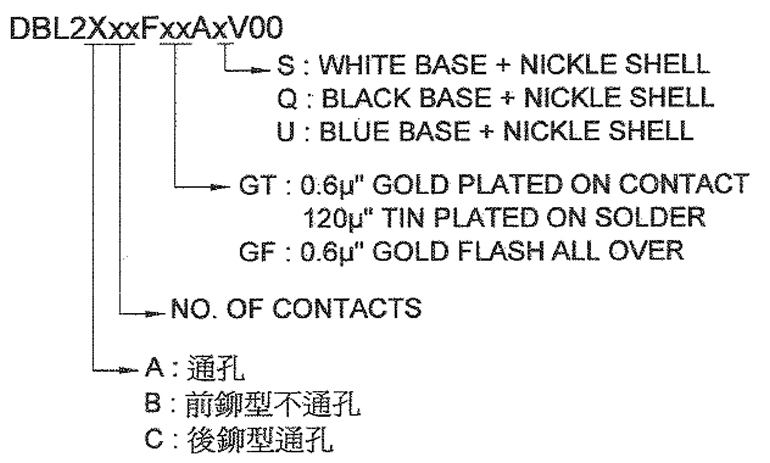

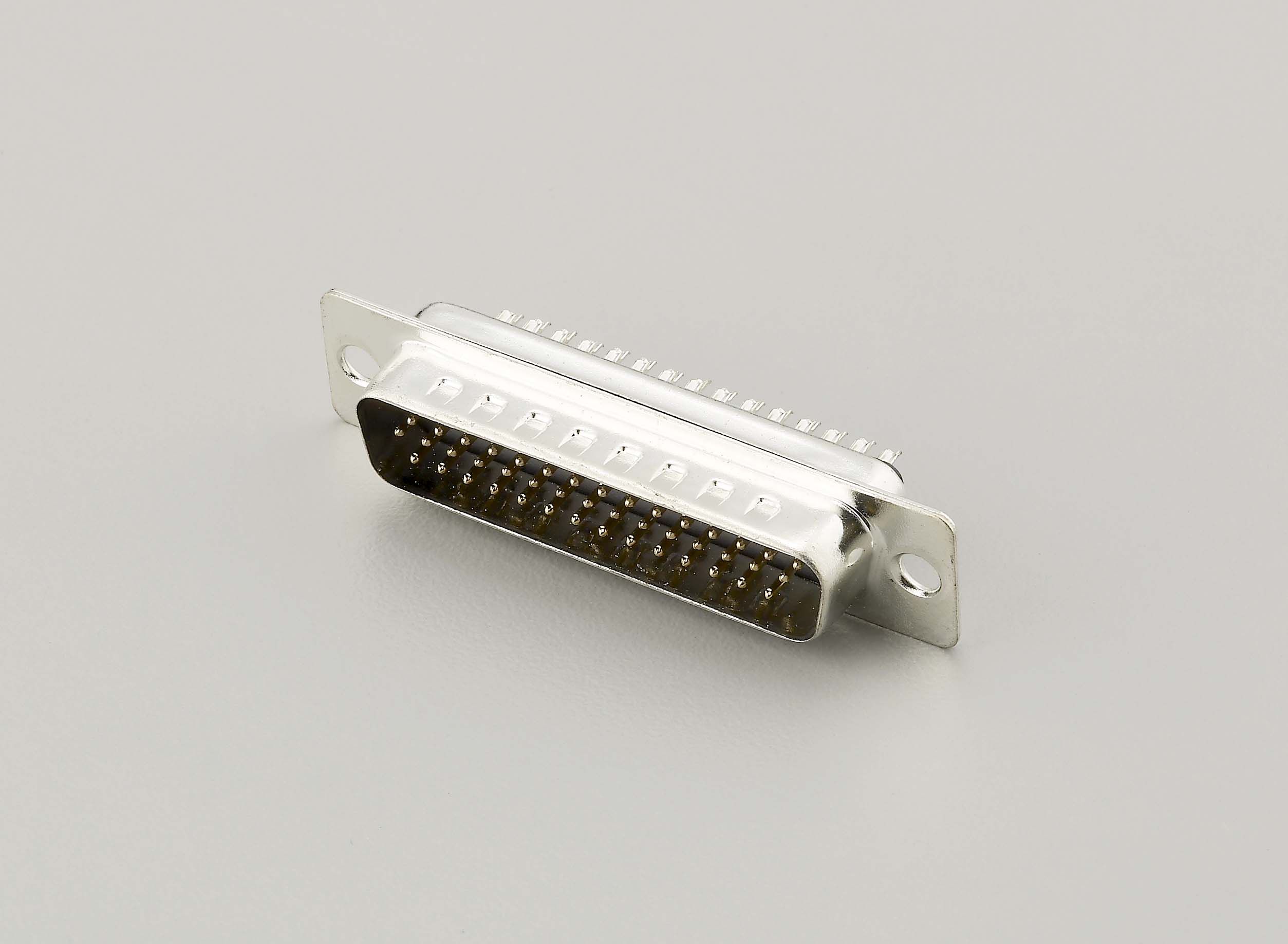

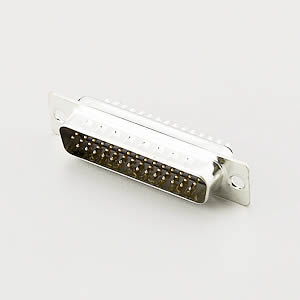

DBL2XxxFxxAxV00 D-SUB / Solder Type

Specifications:

Current Rating: 5A
Voltage Rating: 350V AC
Withstand Voltage: 500V AC(RMS)
Insulator Resistance: Over 1000 MΩ
Contact Resistance: 5 MΩ at 1A
Temperature: -40℃ To + 100℃
Material
Insulator: P.B.T +30% Gass Fiber UL94V-0
Pin Contacts: Brass or Phosphor Bronze
Gold Plated & Tin Plated
Shell: Steel, SPCC Nickel & Tin Plated
