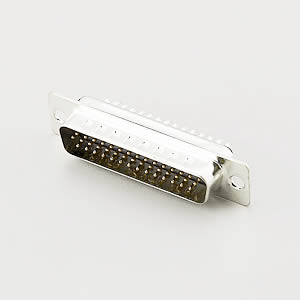

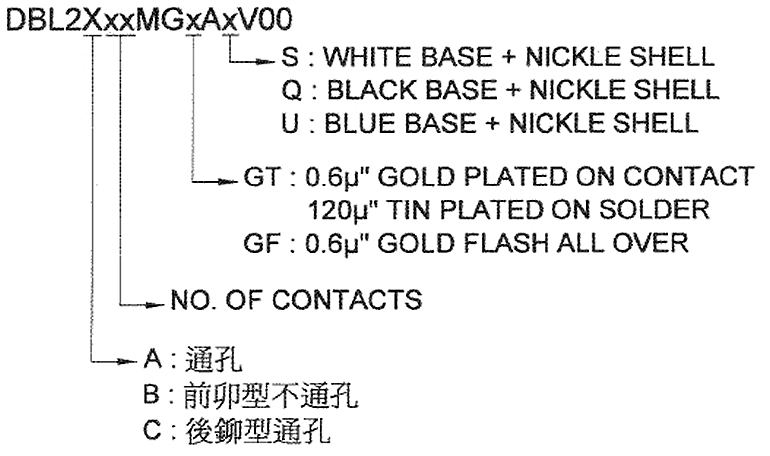

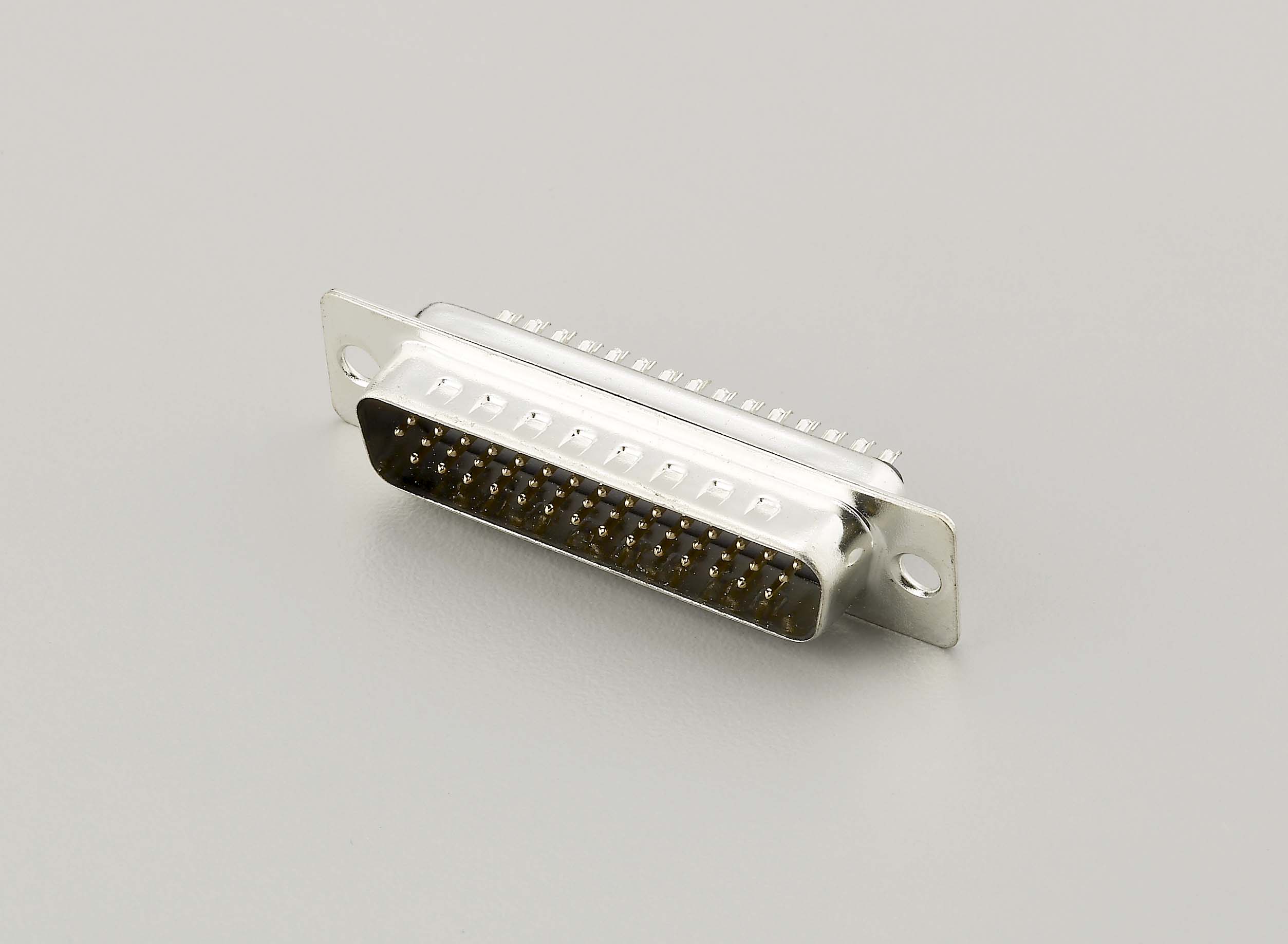

DBL2XxxMGxAxV00 D-SUB / Solder Type

Specifications:

Insulator: High Temperature Thermoplastic GF, UL 94v-0
Contact : Copper Alloy, T=0.20mm
Shell : SPCC, T=0.30mm
Current Rating:1 A Max.
Dielectric Withstanding : Ac 750 V
Contact Resistance : 30mΩ Max.
Insulation Resistance : 1000 MΩ Min.
Total Mating Force :7.0 KGF Max.
Total Unmating Force : 1.5 KGF Min.
Temperature Rang : -25°C ~ 85°C
