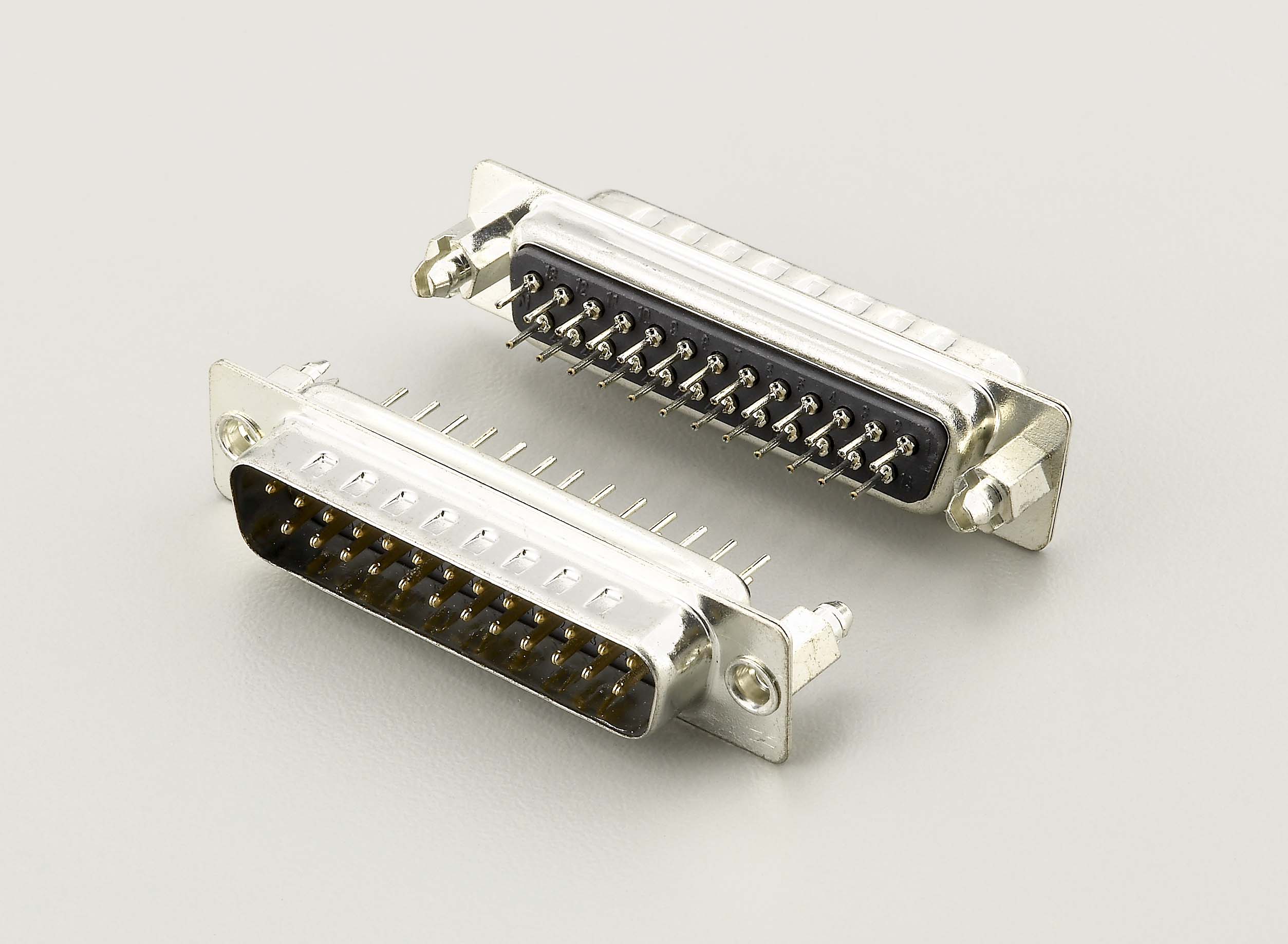

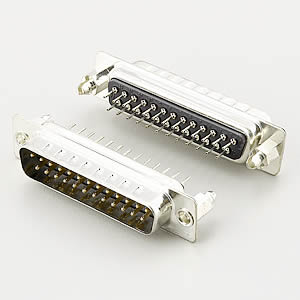

DBS2XxxFGxAxV00 D-SUB / PCB Straight Type

Specifications:

Insulator : High Temperature (Thermoplastic With G.F,Ul94v-0)
Contact : Copper Alloy ,T=0.20mm
Contact :0.60" Gold Plated
Current Rating:1 A Max.
Dielectric Withstanding
Voltage : 750 V(Ac) For 1 Min.
Contact Resistance : 30 MΩ Max.
Insulation Resistance : 1000 MΩ Min.
Total Mating Force: 7.0 KGF Max.
Total' Unmating Force: 1.5 KGF Min.
Temperature Range : -40°C - +105°C
