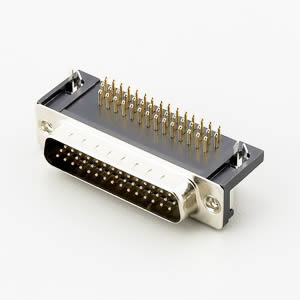

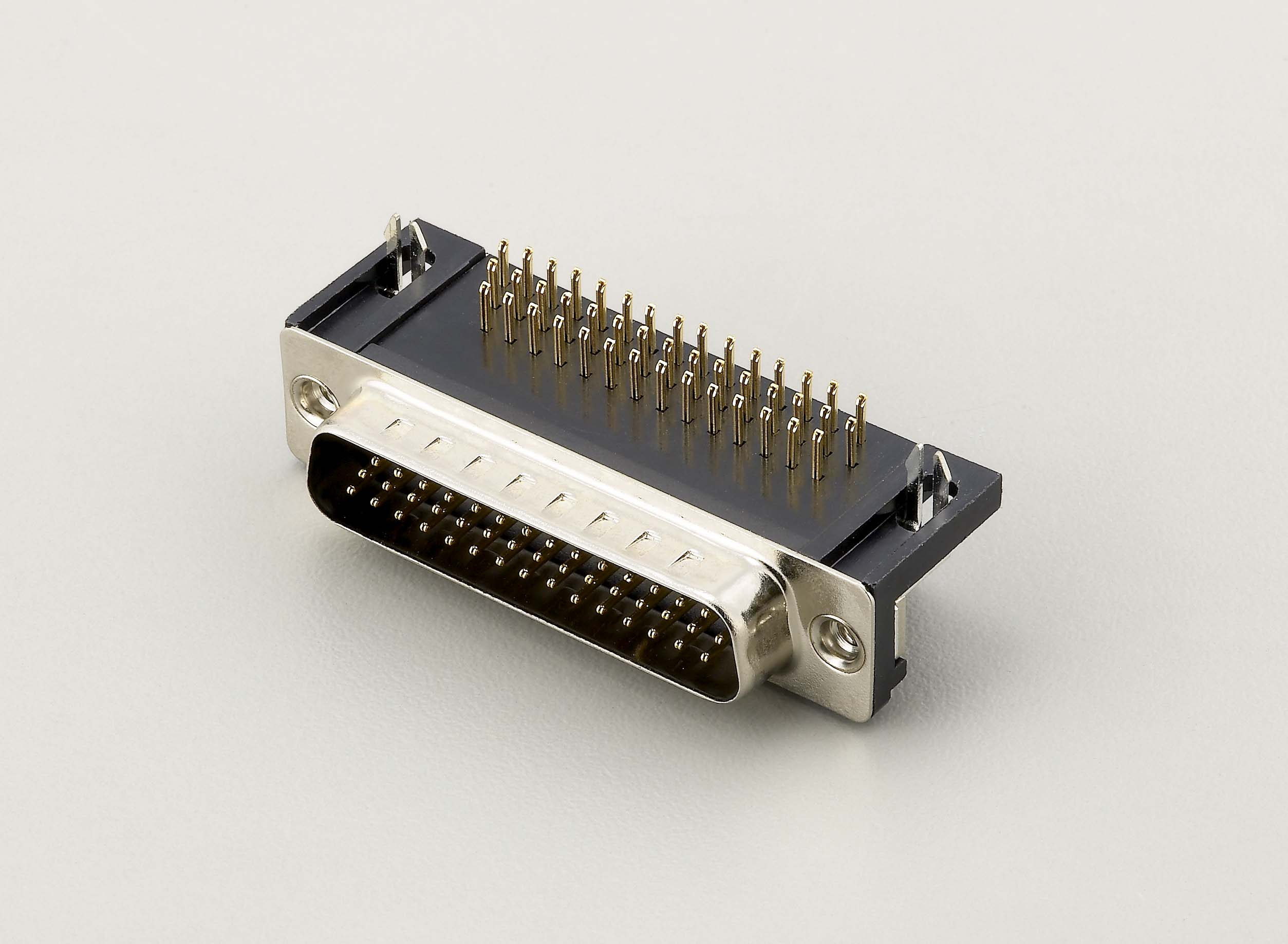

DBR2QxxMGxAQV00 D-SUB / PCB Right Angle

Specifications:

Insulator : Pbt+30% Glass Fiber (Ul94v-0)Black
Contact Material : Brass

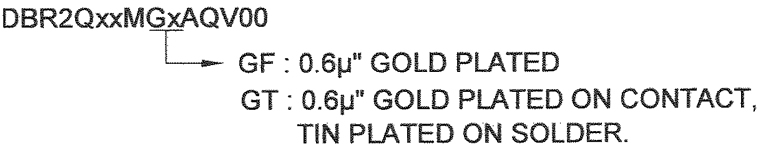

Contact Finish : See Order Information
Shell Finish: Steel, Nickel Plated
Current Rating: 5 Amps
Dielectric Withstanding Voltage : Ac 1000 V
Insulation Resistance : 1000mΩ Min At 500VDC
Contact Resistance : 15mΩ Max.
Operating Temperature: -25°C ~ +85°C
