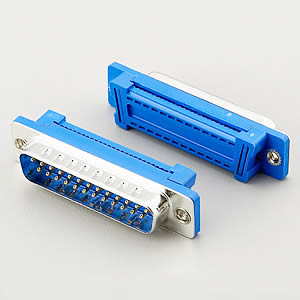

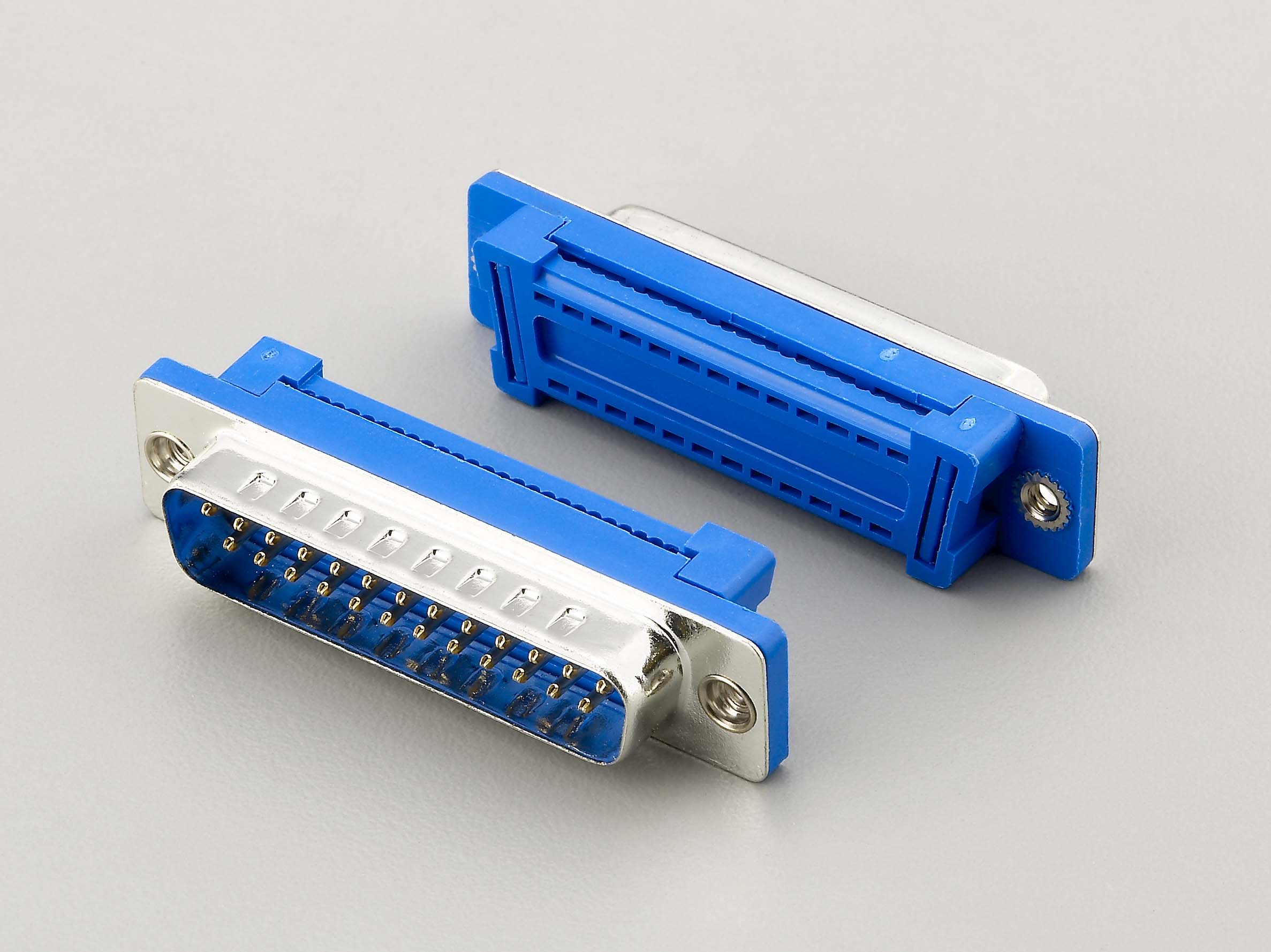

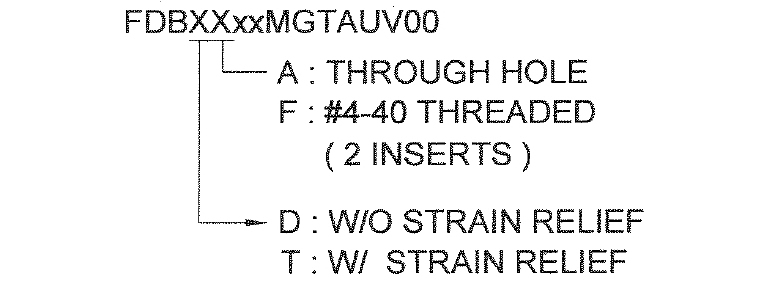

• FDBXXxxMGTAUV00 D-SUB / IDC Type
    FDBXXxxMGTAUV00 D-SUB / IDC Type

    FDBXXxxMGTAUV00 D-SUB / IDC Type

    Specifications:

    Wire Size : AWG 26 - 28
    Dielectric Material :P.B.T + 30 % G.F Ul94v-0
    Contact Plating : Gold Over Nickel
    Contact Material : Phosphor Bronze
    Insulation Resistance : 1000 MΩ AT 500 VDC
    Operating Temperature : -40 °C ~ 105°C
    Contact Resistance : 15 MΩ Max. Mated.
