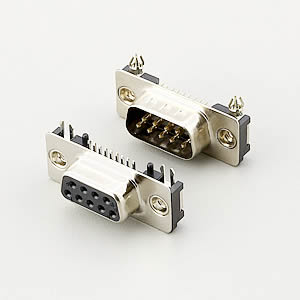

DBE2XxxFGTDQV00 D-SUB / SLIM Type

Specifications:

 Insulatorlpbt+30% Glass Fiber(Ul,94v-0)
 Contact : Phosphor Bronze Or Brass
 Contact Plated : Gold Over Nickel
 Shell Finish : Stell Nickel Plated
 Current Rating : 5amps
 Dielectric Voltage : 1000v For One Minute
 Insulation Resistance : 100ωm Min.At 500v Dc
 Contact Resistance : 15mω Max.10ses.
 Operating Temperature : -55℃~+105℃
