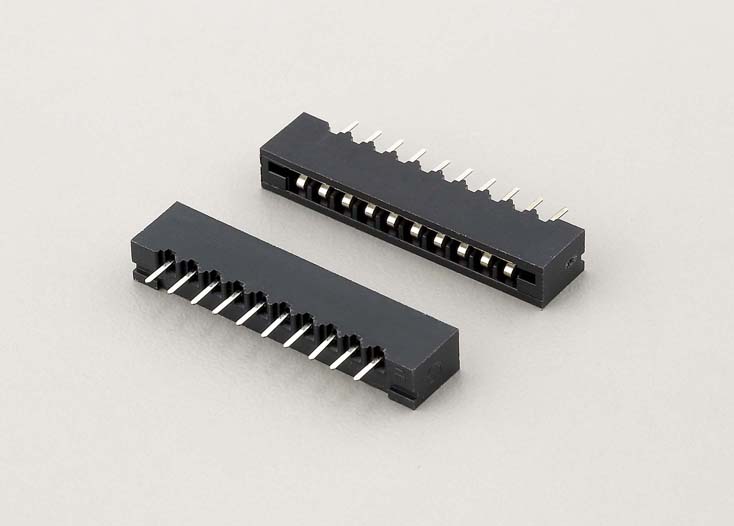

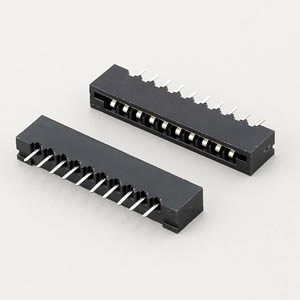

FP1LDSxxTT0T Straight Dual Contact

Specifications:

Insulator: Glass-Reinforced Thermoplastic.
Contact: Phosphor Bronze.
Plating: All Tin, Lead Free.
Voltage Rating: 250 VAC Rms.
Current Rating: 1 AMP
Dielectric Withstanding Voltage: 1000 VAC Rms 60 Hz. For 1 Minute.
Insulation Resistance: 5000 Megohms Min At 500 VDC.
Contact Resistance: 25 Milliohms Max.
Durability: 20 Cycles
Temperature Range: -55゜C To +85゜C
