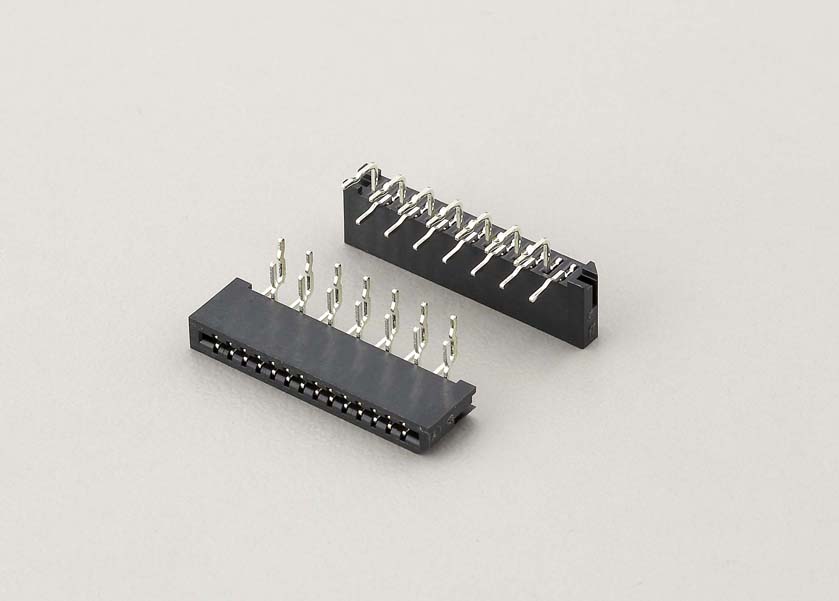

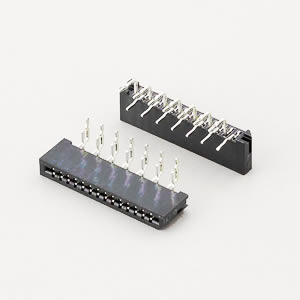

• FP2LDRxxTT1T Right Angle Standard Layout Dual Contact
    FP2LDRxxTT1T Right Angle Standard Layout Dual Contact

    FP2LDRxxTT1T Right Angle Standard Layout Dual Contact

    Specifications:

    Insulator: Glass-Reinforced Thermoplastic.
    Contact: Copper Alloy.
    Plating: All Tin, Lead Free.
    Current Rating: 0.5 AMP.
    Dielectric Withstanding Voltage: 500 VAC Min.
    Insulation Resistance: 1000 MΩ Min.
    Contact Resistance: 30 mΩ Max.
    Temperature Range: -55゜C To +85゜C

    PDF
