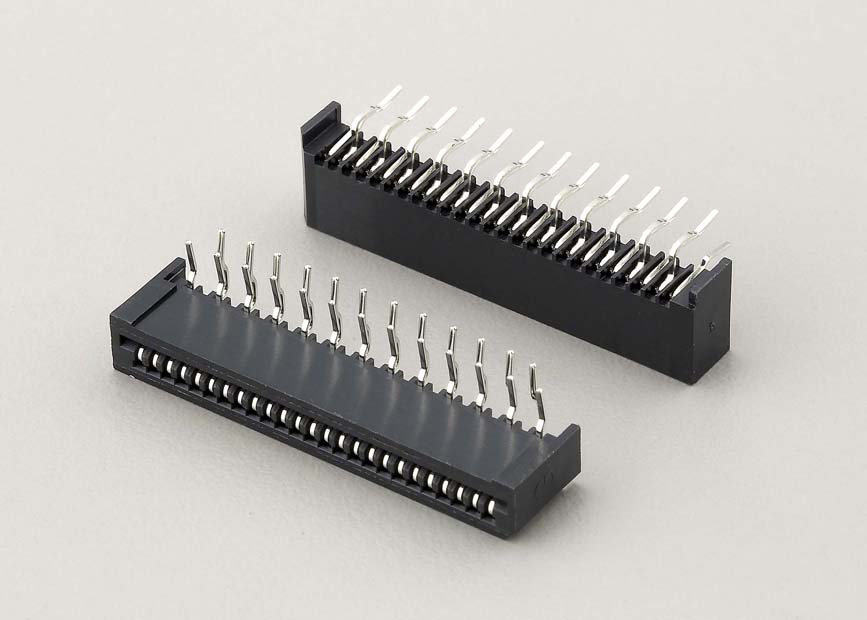

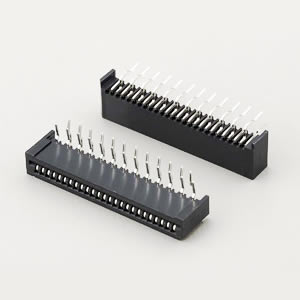

FP2LRUxxTT0T Right Angle Standard Layout Upper Contact

Specifications:

Insulator: Glass-Reinforced Thermoplastic.
Contact: Phosphor Bronze.
Plating: Tin Plated Over Nickel.
Voltage Rating: 250 VAC Rms.
Current Rating: 1 Amp.
Dielectric Withstanding Voltage: 500 VAC Rms 60 Hz. For 1 Minute.
Insulation Resistance: 1000 MΩ Min At 500 VAC
Contact Resistance: 25 mΩ Max.
Durability: 20 Cycles.
Temperature Range: -40゜C To +85゜C
