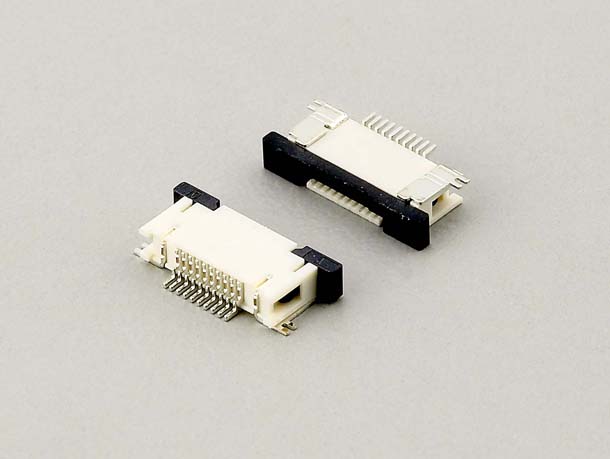

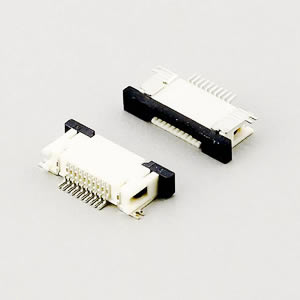

FP4ZLUxxTT0T SMT Side Entry Upper Contact

Specifications:

Sizes 03 To 60 Pin.
For 0.3mm Thickness FFC/FPC.
Voltage:50v Max.
Current:0.5a Max.
Contact Resistance 20 Milliohms Max.
Insulation Resistance:50 Megohms Min.
Dielectric Withstanding Voltage 250V AC
Temperature: -40°C To 85°C
Housing High-Temp. Thermoplastic, UL 94V-0.
Actuator High-Temp. Thermoplastic. UL94V-0.
Contact: Phosphor Bronze. Plating Tin/Lead.
Holddown: Brass. Plating Tin/Lead.
