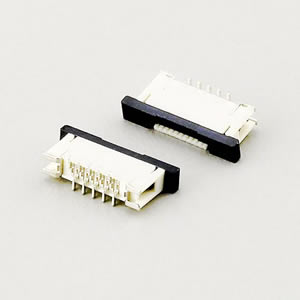

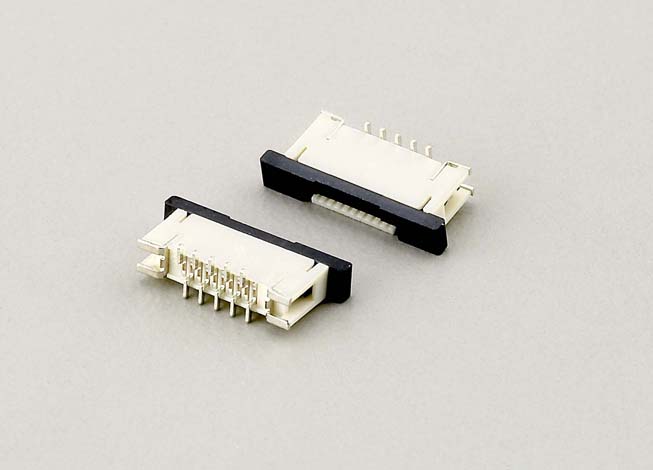

FP4ZSSxxTT2T SMT Standard Layout Single Contact

Specifications:

Sizes 03 To 60 Pin.
For 0.3mm Thickness FFC/FPC.
Voltage: 50V Max.
Current: 0.5A Max.
Contact Resistance: 20 Milliohms Max.
Insulation Resistance: 50 Megohms Min.
Dielectric Withstanding Voltage: 250V AC.
Temperature: -40゜C To 85゜C
Housing: Pa-46(Black)
Actuator: High-Temp. Thermoplastic. UL 94V-0
Contact: Phosphor Bronze. Plating: Bright Tin 100u" Min, Over/50u" Min Ni On Contact.
Holddown: Brass. Plating: Bright Tin 100u" Min, Over/50u" Min Ni On Contact.
