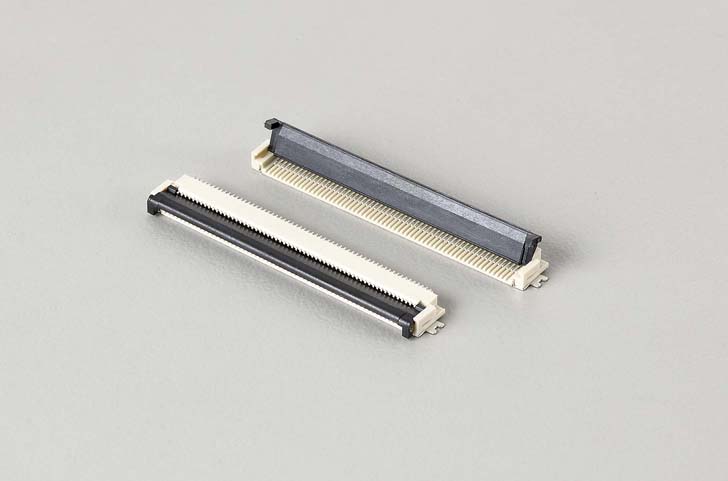

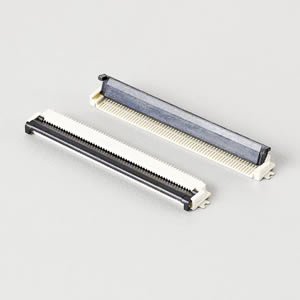

FP4ZUAxxTT1R SMT Piano Type Bottom Contact

Specifications:

Housing: PA46, UL94V-0, Color: Natural.
Cover: PA9T, UL 94V-0, Color: Black.
Contact: Phosphor Bronze.
Plating: Tin, Lead Free, Or All Gold.
Holddown: Brass. Plating: All Tin, Lead Free, Or All Gold
Voltage: 50V Max.
Current: 0.4A Max.
Dielectric Withstanding Voltage: 250VAC.
Insulation Resistance: 50 MΩ Min.
Contact Resistance: 20 mΩ Max.
Temperature Range: -20゜C To +85゜C
Sizes 04 To 50 Pin.
For 0.3mm Thickness FFC/FPC.
