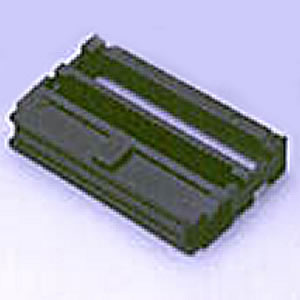

127CX-xxP HD IDC Socket

Material:

HOUSING : THERMOPLASTIC (UL 94V-0) BLACK
TERMINAL : COPPER ALLOY/GOLD FLASH PLATING ON CONTACT AREA
UNDER PLATING NICKEL. (t=0.30mm)

Specifications:

CURRENT RATING : 1 AMP. MAX.
DIELECTRIC WITHSTANDING VOLTAGE : 500V AC R.M.S. FOR ONE MINUTE.
INSULATION RESISTANCE : 500M OHMS MIN. AT 500V DC.
CONTACT RESISTANCE : 30m OHMS MAX.
OPERATING TEMPERATURE : -40℃ TO +85℃.
