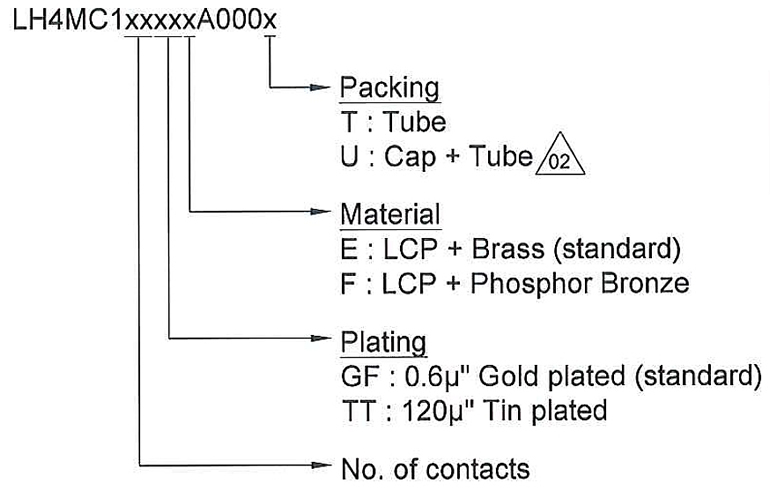

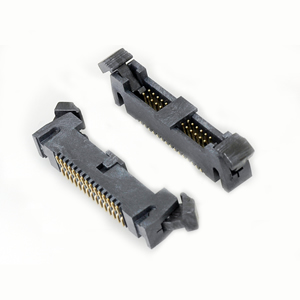

LH4MC1xxxxxA000x Latch Header SMT

Specifications:

Current Rating: 1A
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 260±10℃ for 3~5 seconds
Contact Material : Brass/Phosphor Bronze
Insulator Material : LCP,UL94V-0(Black)
Finish : 0.6u" Gold plated/120u" Tin plated
