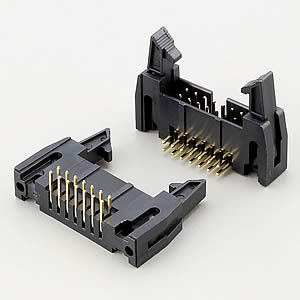

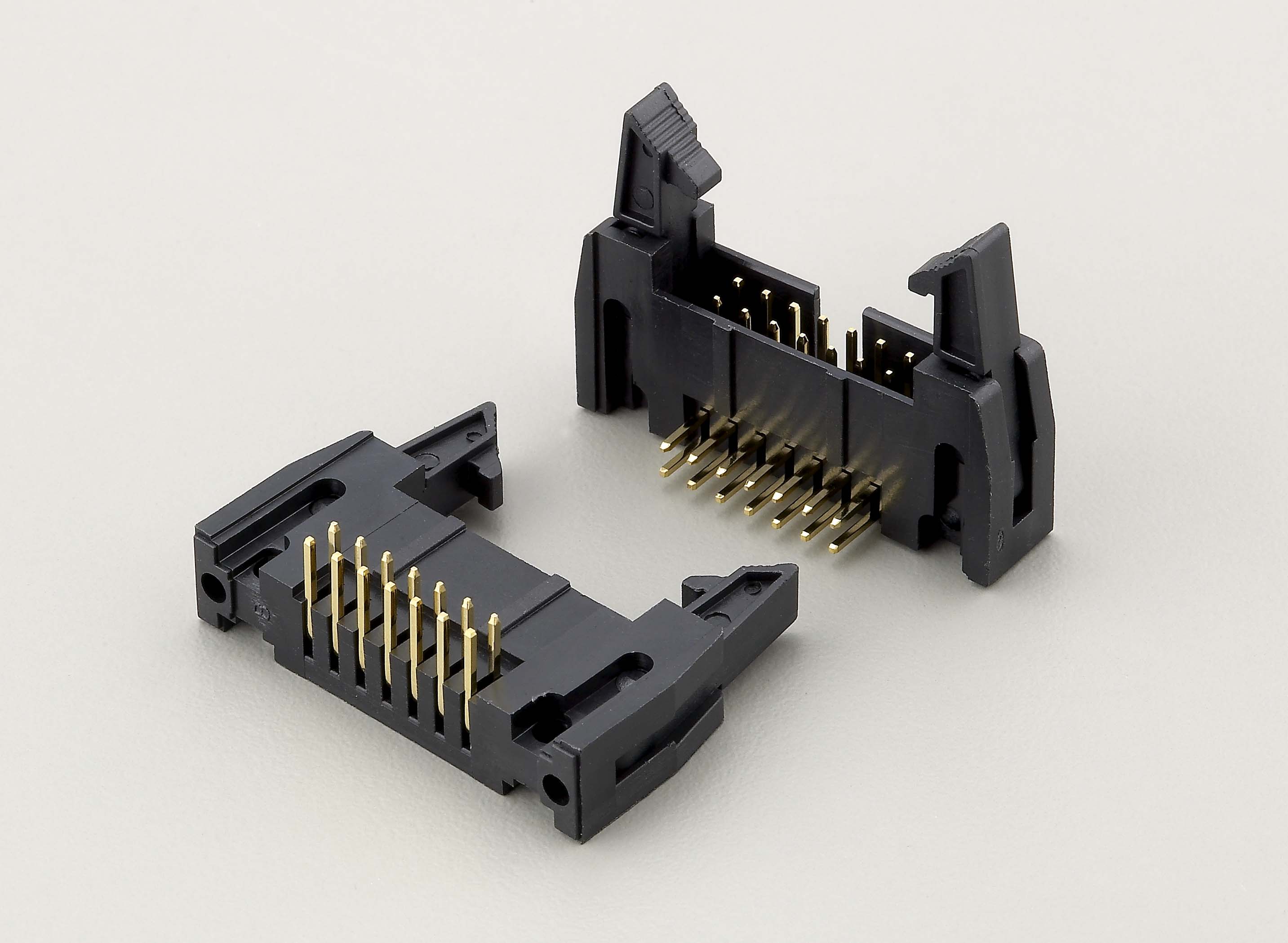

• LH1RA0xxGFxx000V Latch Header Right Angle
    LH1RA0xxGFxx000V Latch Header Right Angle

    LH1RA0xxGFxx000V Latch Header Right Angle

    Specifications:

    Current Rating: 3A
    Insulation Resistance: 5000 MΩ min.
    Dielectric Withstanding : AC 1000V
    Contact Resistance: 20 mΩ max.
    Operating Temperature : -40℃~+105℃
    Contact Material : Brass
    Insulator Material : PBT/Nylon-6T,UL94V-0(Black)
    Finish : Gold plated
    Packing : Tray

    PDF
