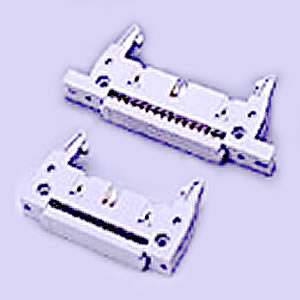

254R-xxP-2 IDC Latch Header

Material:

Insulator : PBT+30% Glass fiber(UL94V-0)
Contact : Copper Alloy
Contact Plated : Gold or Tin over Nickel plated

Specifications:

Current Rating: 1Amp
Withstanding Voltage : AC 500V for 1 minute
Insulation Resistance: 1000 MΩ min. at DC 500V
Contact Resistance: 15 mΩ max.
Operating Temperature : -40℃~+105℃
