• LH1SA0xxGFAx000V Latch Header Straight

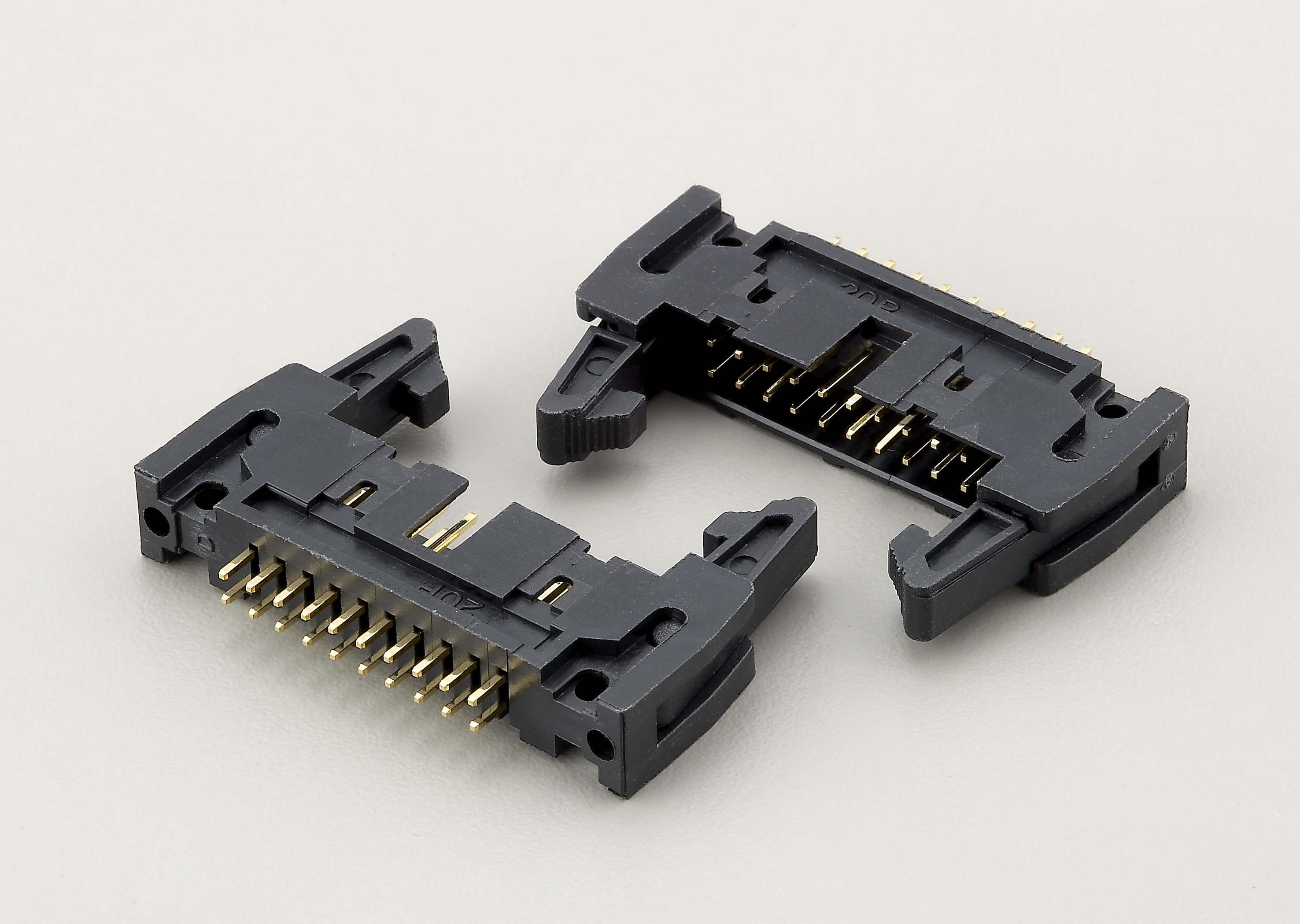

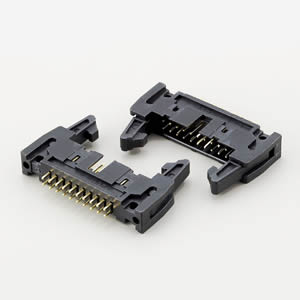

    LH1SA0xxGFAx000V Latch Header Straight

    LH1SA0xxGFAx000V Latch Header Straight

    Specifications:

    Current Rating: 3A
    Insulation Resistance: 5000 MΩ min.
    Dielectric Withstanding : AC 1000V
    Operating Temperature : -25℃~+85℃
    Contact Material : Brass
    Insulator Material : PBT,UL94V-0(Black)
    Finish : 0.6u" Gold plated on contact area
    Packing : Tray
