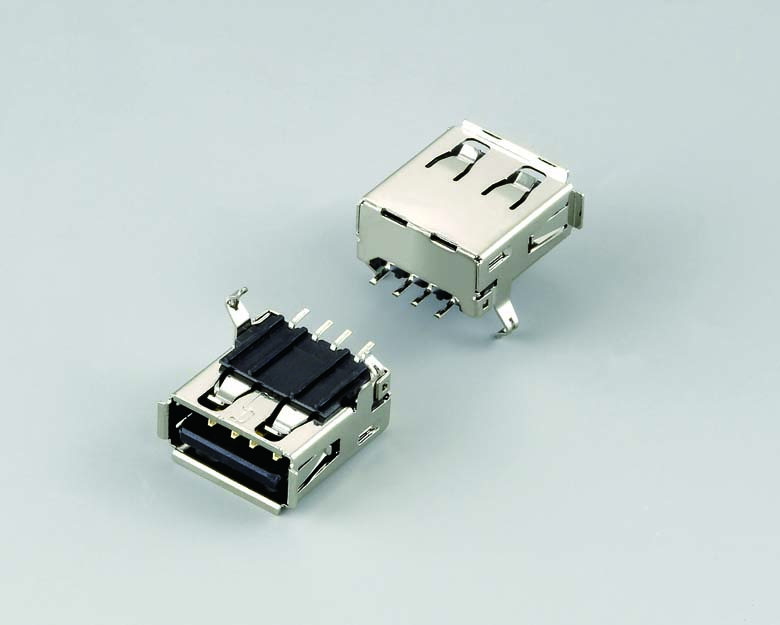

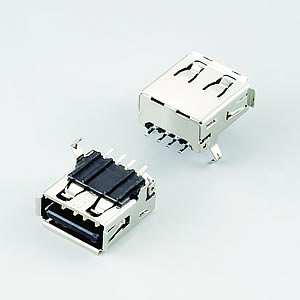

UBF004xxxxV13 USB / A / Female / Straight / Right Angle / SMT

Specifications:

Contact Resistance : 30 m max.
Dielectric Withstanding Voltage : 500V AC
Insulator Resistance : 1000 MΩ min.
Insertion Force : 4.0 KG max.
Extraction Force : 0.7 KG min.
Material Housing : PBT/LCP, UL 94V-0/02
Contact : Phosphor Bronze
Shell : Brass

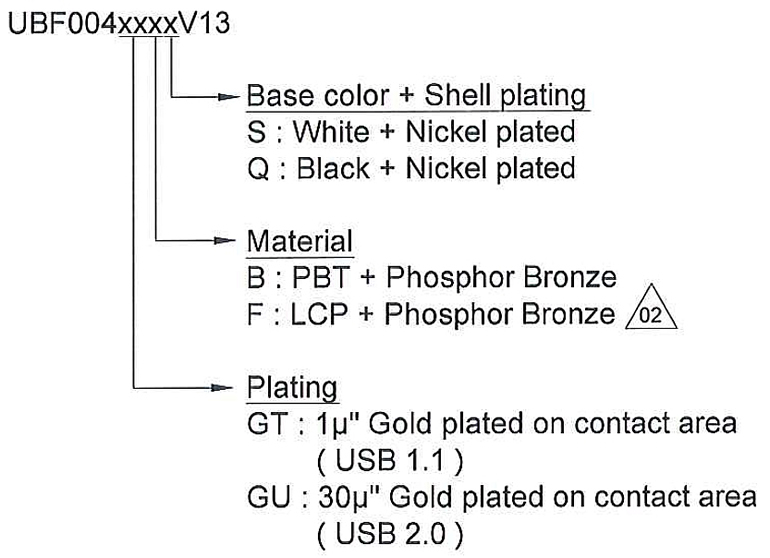

Contact : See order information
Solder : 120u" Tin plated Shell : Nickel plated
