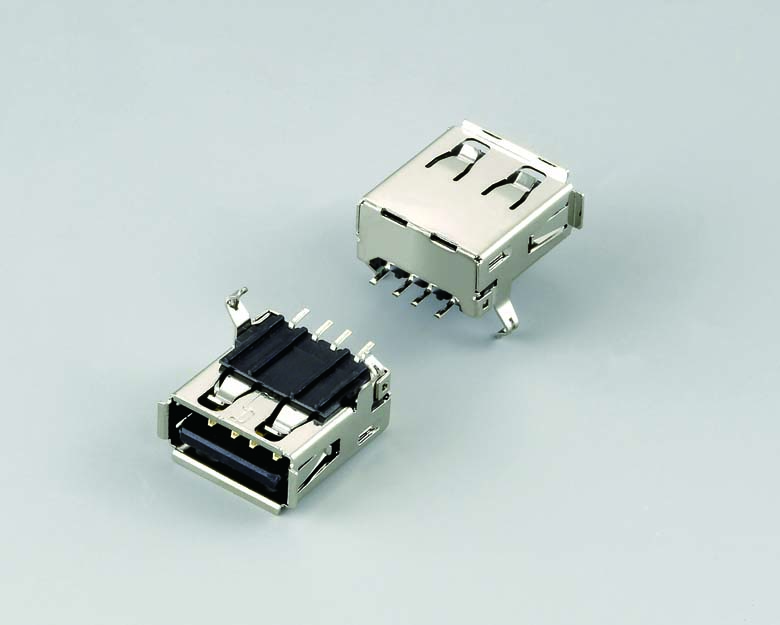

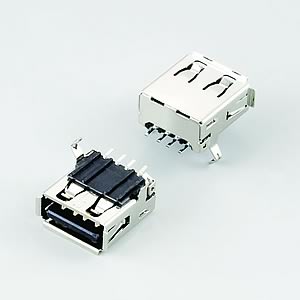

UBF104xxxxx2x USB / A / Female / Straight / Right Angle / SMT

Specifications:

Insulator : LCP/PBT UL 94-VO rated.
Contact : Brass,t = 0.25mm.
Shell : Brass / K7, t = 0.30mm.
Rated voltage and current : 1.5A at 250V AC min.
Dielectric withstanding voltage : 500V AC/1 minute without breakdown.
Contact resistance : Before life test 30 mΩ max.,After life tset 50 mΩ max.
Insulation resistance :1000 MΩ min.
Insertion force : 35N max.
Extraction force : 10N min.
Solderability : Terminal shall be immersed in flux before test, then dip in molten solder for 5±0.5 sec. at 245±5°C.

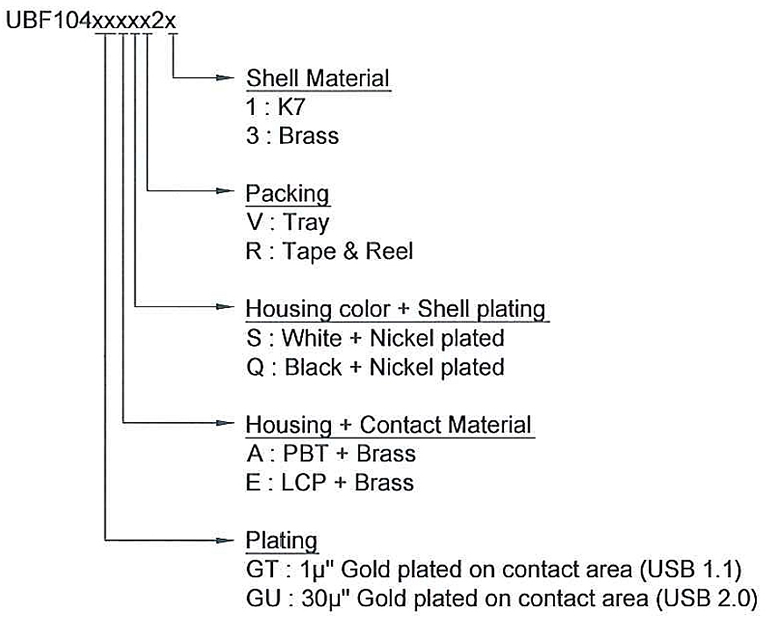

Contacts : see order information
Solder : 100~120p" Tin plated
Shell : Nickel plated
