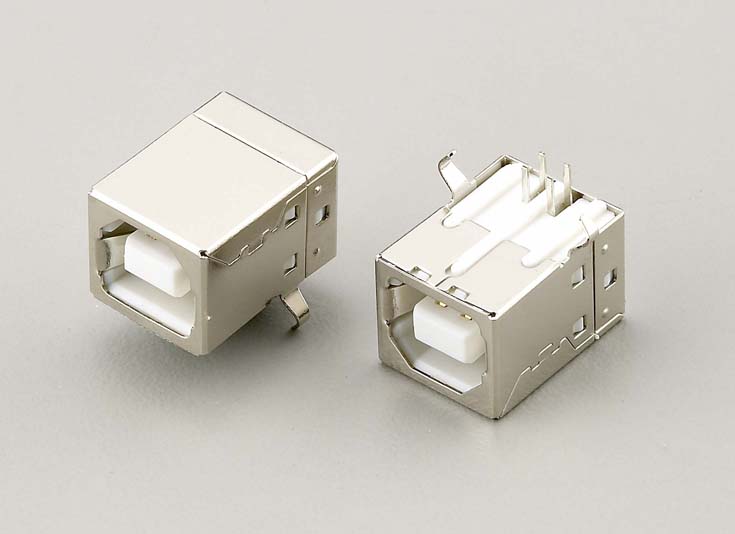

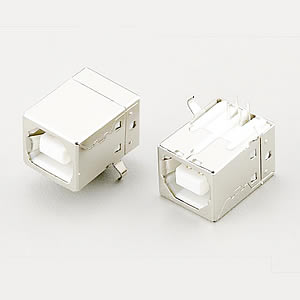

UBH104GADSV1 USB / B / Female / Right Angle

Specifications:

Insulator : PBT + 30%G.F Ul 94V-0
Contact : Phosphor Bronze
Shell : Brass
Mating : 35n Max
Withdrawal Force : 10n Min
Dural Ility : 1500 Cycles Min
Current-Max : 1.0a
Voltage-Max : 30v
Withstanding Voltage : 100v Ac
Contact Resistance : 50mq Max
Insulation Resistance : 1000mq Min
Contacts : Gold Flash And Tin Over Nickel Plated
Shell : Nicke ( Tin) Over All Plating
Environmental: Temperature Range: -25°C To +85°C
