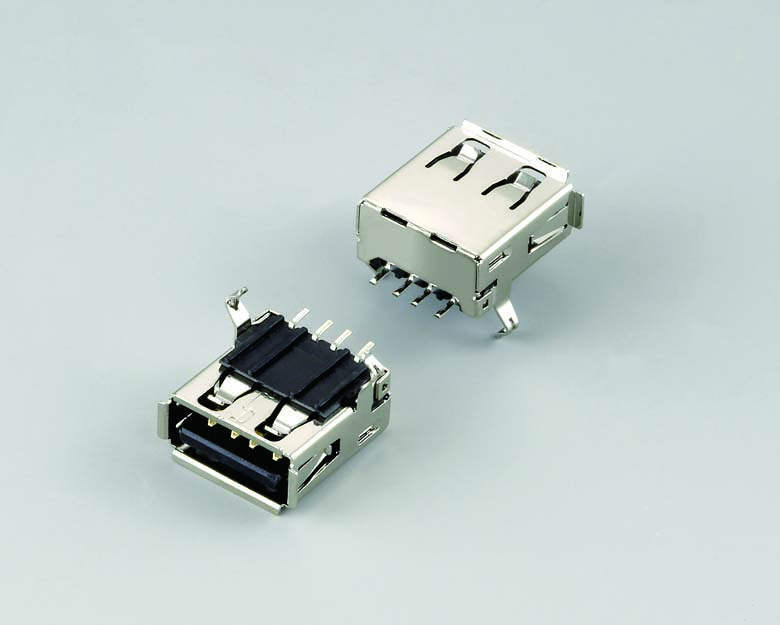

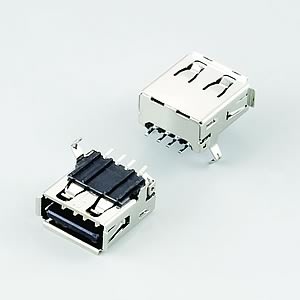

UBF004xxEV21 USB / A / Female / Straight / Right Angle / SMT

Specifications:

Current & Voltage Rating : 1.5A at 250V AC minimum.
Dielectric Withstanding Voltage : 500V (AC) for 1 minute
Contact Resistance : Before life test 30 mΩ max., after life test 50m, max.
Insulation Resistance : 1000 MΩ min.
Insertion Force : 35N max.
Extraction Force : 10N min.
Solderability : Terminal shall be immersed in flux before test, then dip in molten solder for 5±0.5 sec. at 245±5°C. Insulator Material : LCP , UL94V-0 (Black / White)
Contact Material : Brass , t=0.25mm
Shell Material : K7, t=0.30mm
Finish : Contact : Gold plating
Solder : 100"~120u" Tin plated over 500"~800" Nickel
Shell : 50~80p" Nickel plating over 50u" Copper
