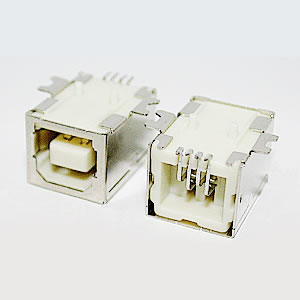

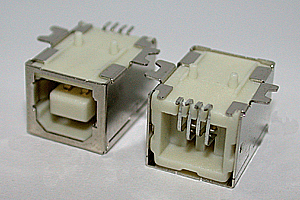

UBI104xxLSV1 USB / B / Female / SMT

Specifications:

Housing : Pa46, Glass Fiber Filled.Ul 94v-O Rated. (Color: White ) Contact : Phosphor Bronze (T=0.25mm ) Shell : Brass (E=0.30mm) Rear Cover: SPCC (E=0.30mm)

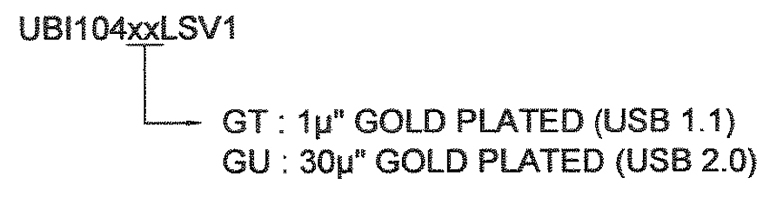

Contact:10" Gold Plated (USB 1.1)
/30u" Gold Plated (USB 2.0)
Shell : Plated With 120u" Thickness
Nickel Over 50p* Min. Thickness Cu.
Contact Resistance: 30 MΩ Max.
Dielectric Withstanding Voltage : 750 VAC At Sea Level.
Insulation Resistance : 1000 MΩ Min.
Mechanical : Mating Force : 3.57kg Max.
Unmating Force: 1.02kg Min.
