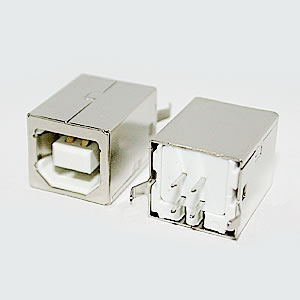

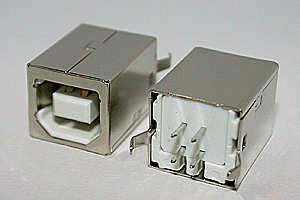

UBG004xxBSV13 USB / B / Female / Straight

Specifications:

Current & Voltage Rating : 1A & 30Vac max.
Insulation Resistance : 1000 MΩ min.
Contact Resistance : 30 mΩ max.
Dielectric Withstanding : AC 500 V
Operating Temperature : -25°C ~ +85°C
Mating : 35N max.
Withdrawal Force : 10N min.
Durability : 1500 cycles min.
Insulator : PBT + 30%G.F., UL 94V-0 (White)
Contact : Phosphor Bronze (C5191-H), T=0.25
Shell : Brass (C2680-H),T=0.30

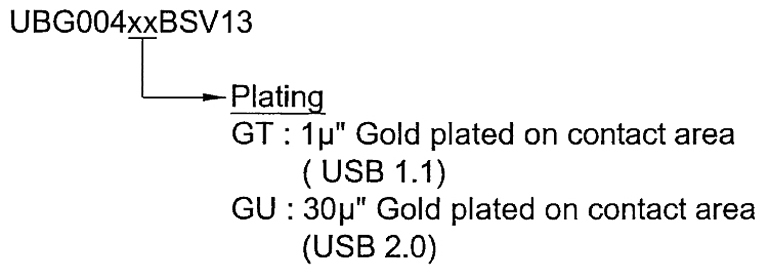

Contact : See order information
Solder : Tin plated
Shell : Nickel on all plated
Packing : Tray
