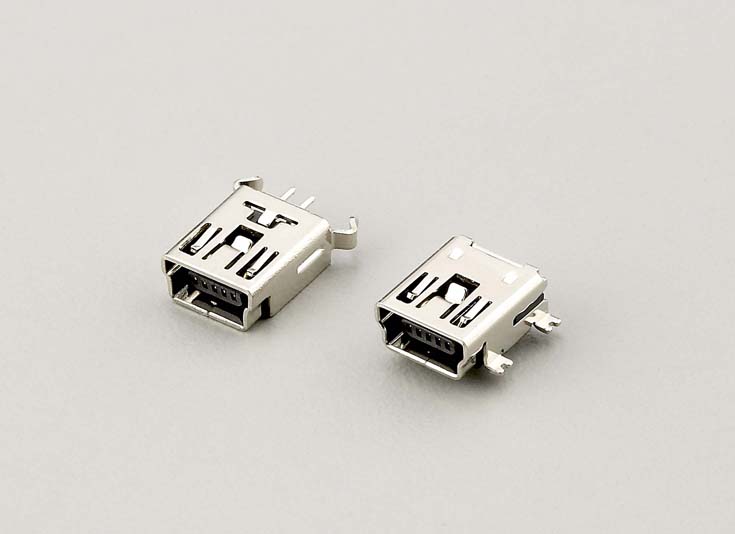

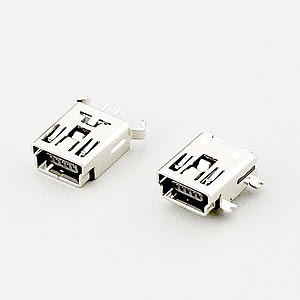

UBMD10C05xxFQx1 Mini USB / B / Female / Right Angle

Specifications:

Material : Thermoplastic, Pa46 LCP.Ul 94v-O, Color: Black.
Contact : Phosphor Bronze, C5191r-H, T=0.25mm.
Shell: Phosphor Bronze, C5191, R=0.40mm.

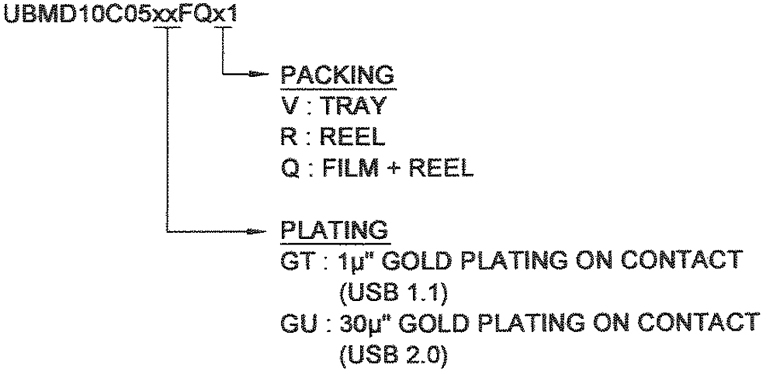

Contact : See Order Information .
Solder : 1000" Matte Tin Plated.
Current Rating : 1a Max.
Dielectric Withstanding Voltage: 100 VAC For 1 Minute.
Contact Resistance: 50 MΩ Max.
Insulation Resistance : 1000 MΩ Min. At Dc 500v.
Total Mating Force : 3.57 KGF Max.
Total Unmating Force :0.71 KGF Min.
Temperature Range : -40°C+105°C.
