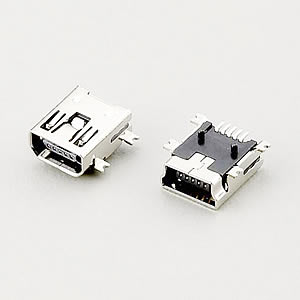

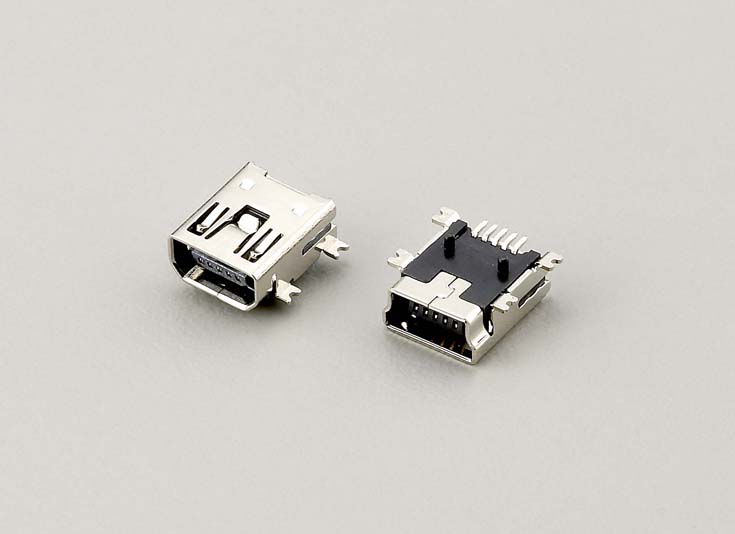

UBMI10C05xxEQx1 Mini USB / AB / Female / SMT

Specifications:

Contacts : Phosphor Bronze
Insulator : LCP + 30% G.F. Ul 94v-0
Shell : Brass
Mating: 35n Max.
Withdrawal Force: 7n Min.
Durability : 5000 Cycles Min.
Contact-Max [Amps] : 1.0a
Voltage-Max [Volts] : 30v
Withstanding Voltage : 500v Ac
Contact Resistance [Ohms] : 50 MΩ Max.
Insulation Resistance [Ohms] : 1000 MΩ Min.

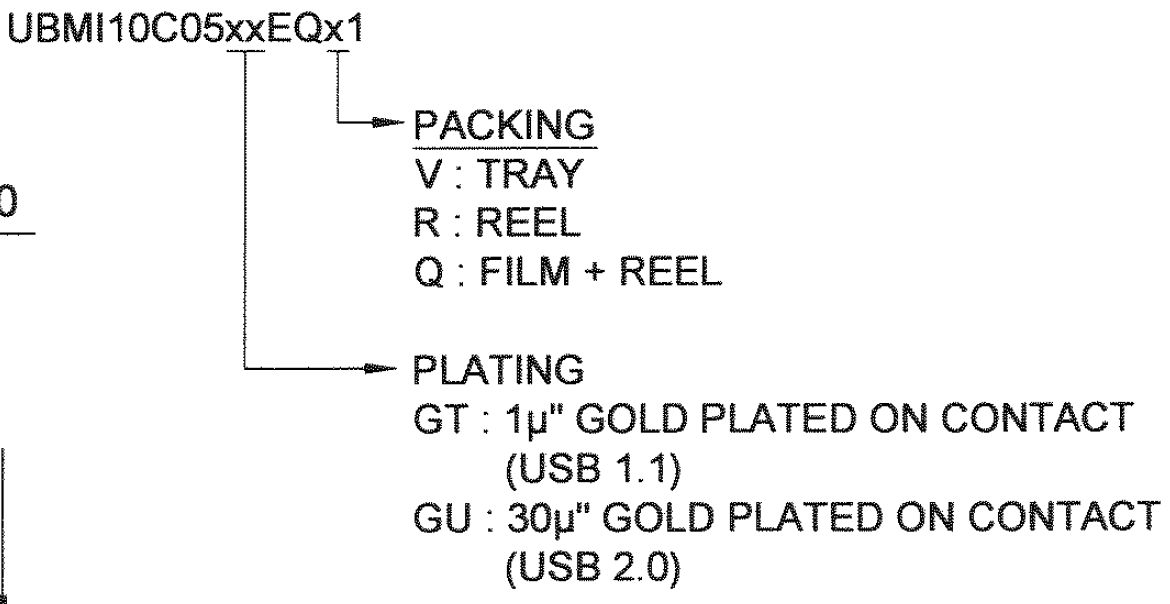

Contacts: See Order Information
Solder: 100u" Matte Tin Plated
Shell : Nickel Over All Plating
Temperature Range : -40°C ~ +105°C
