UBMQ10005xxAQV1 Mini USB / B / Male / Solder Type

Specifications:

Insulator : P.B.T + 30%G.F. Ul 94v-0
Contact : Brass
Shell: SPCC
Mating : 35 Max.
Withdrawal Force: 7 N Min.
Durability : 5000 Cycles Min.
Current-Max [Ampsi : 1.0A
Voltage-Max[Volts] : 30V
Withstanding Voltage: 100V AC.
Contact Resistance [ohms] : 50 mΩ Max.
Insulation Resistance [ohms] : 100 MΩ Min.

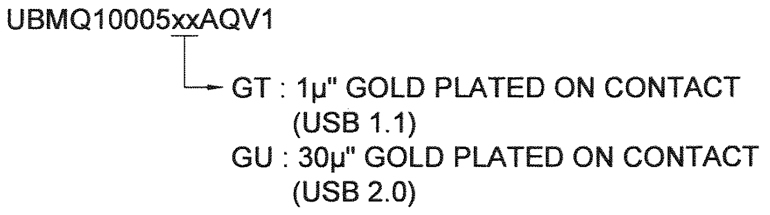

Contacts : See Order Information.
Solder : 120u" Tin Plated
Shell : Nickel Over All Plating
Temperature Rang : -55°C To +85°C
