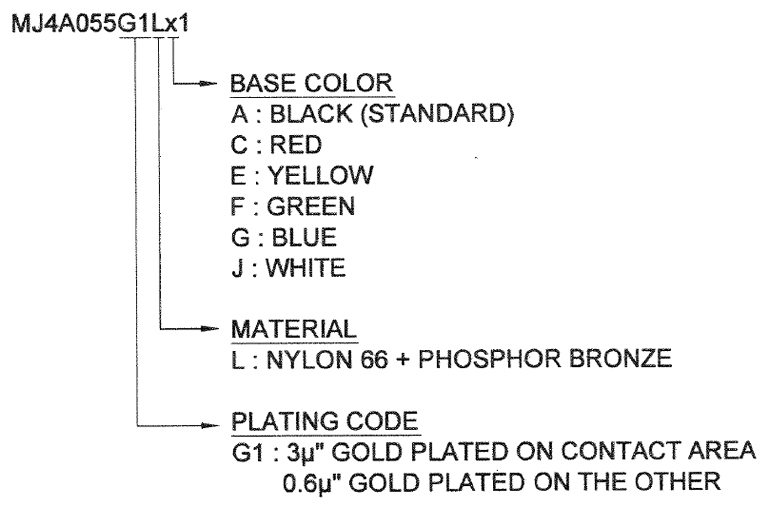

MJ4A055G1Lx1 Mini Jumper Close Type Long Bar

Features:

Double Turing Fork Type Contact Guarantees High Reliability 2.00 Mm Pitch Low-Profile Mini Type Match To 0.50mm SQ. Posts

Material:

Insulator: P.B.T.
Contact: Gold Plated
Terminal: Phosphor Bronze

Specifications:

Current Rating: 3amperes Max
Contact Resistance: 30mΩ Max
Insulator Resistance: 1000 MΩ Max
Dielectric Withstanding Voltage: Ac 650 Volts RMS At Sea Leve
