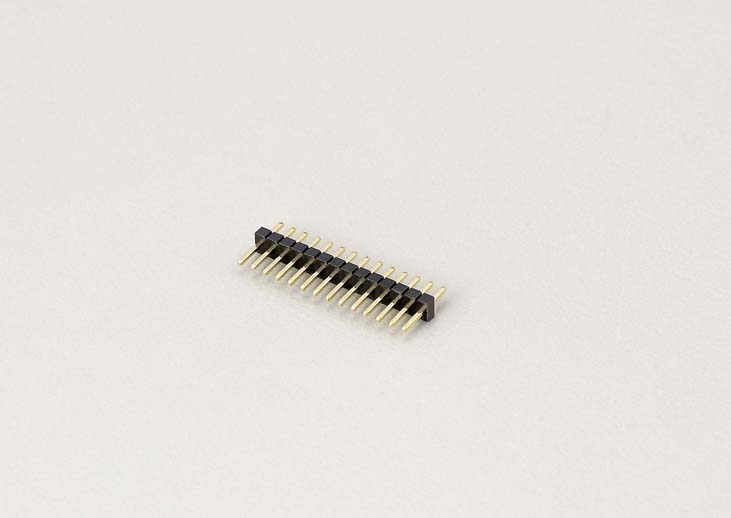

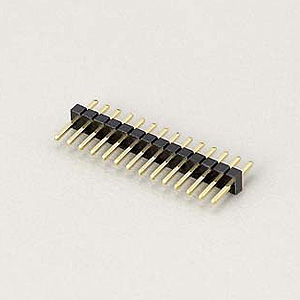

P4SAASxxxxYA04819000B Pin Header Single Row Straight

Specifications:

Cuttent & Voltage Rating: 1A & 12Vac max.
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage: AC 500V
Operating Temperature : -40℃~+105℃
Max.Processing Temp. : 245±5℃ for 3~5 seconds
Contact Material : Brass
Insulator Material : HTN (H.F.), UL94V-0(Black)

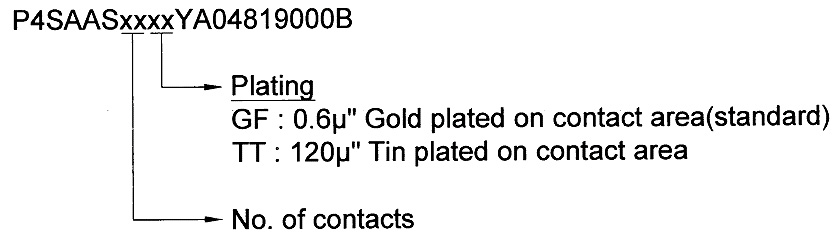

Finish : 0.6u" Gold plated on contact area/120u" Tin plated on contact area
Packing " Bag
