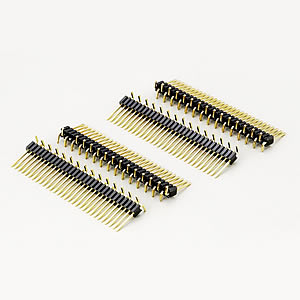

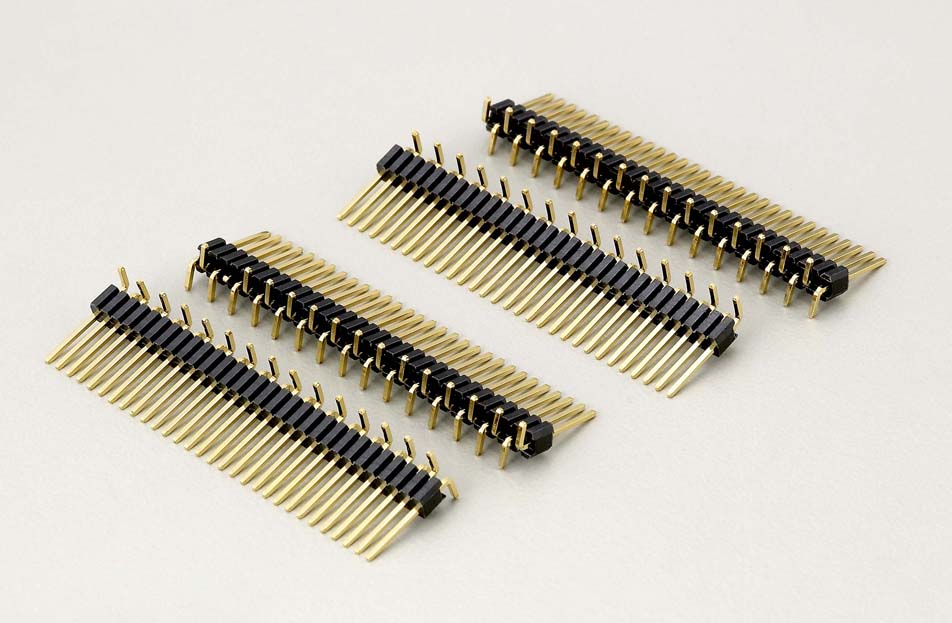

P3MDAD64xxEA20975001B Pin Header Single Row SMT

Specifications:

Current & Voltage Rating: 1A & 12Vac max.
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 260±10℃ for 3~5 seconds
Contact Material : Brass
Insulator Material : LCP, UL94V-0(Black)
Finish : 0.6u" Gold plated/120u" Tin plated
Packing : Bag
