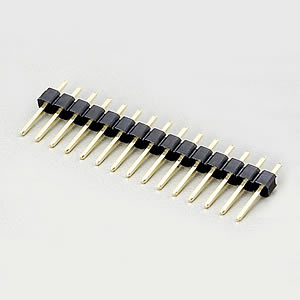

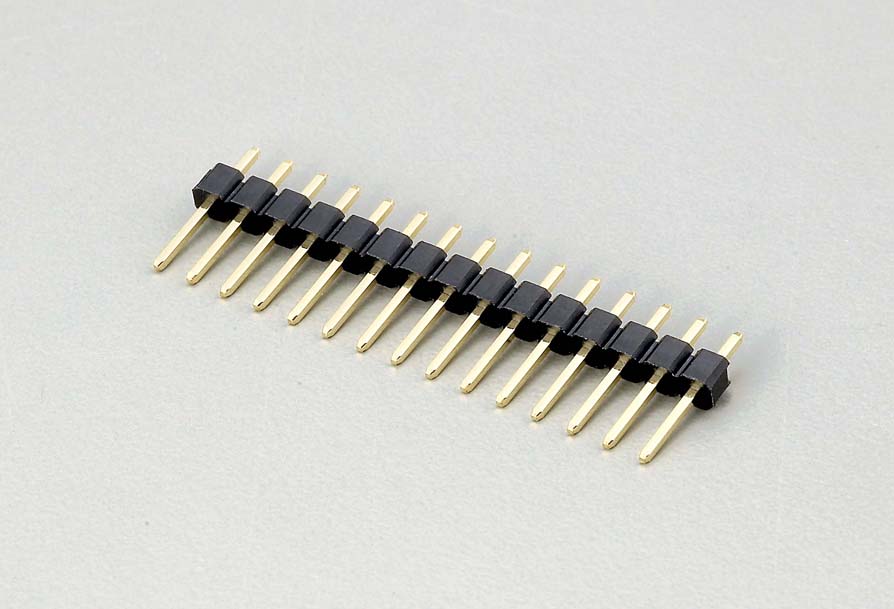

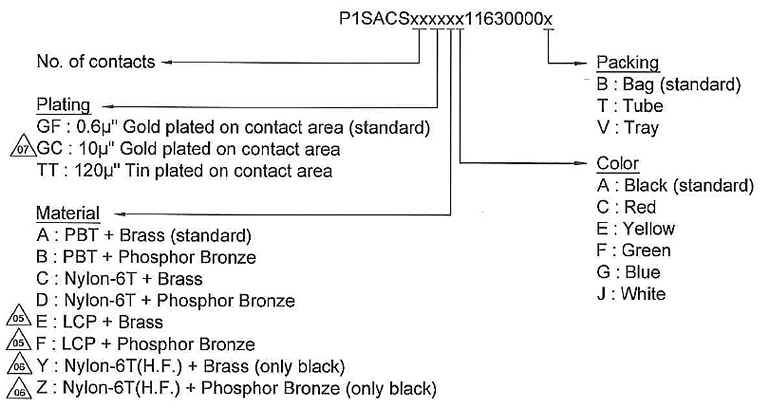

Products List Pin Header(NEW) 2.54 mm P1SAxS Series P1SACSxxxxxx11630000x Pin Header Single Row Straight Specifications:Current & Voltage Rating: 3A & 25Vac max.Insulation Resistance: 5000 MΩ min.Contact Resistance: 20 mΩ max.Dielectric Withstanding : AC 500VOperating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(NY6T/LCP)Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)/260±10℃ for 3~5 seconds(LCP)Contact Material : Brass/Phosphor BronzeInsulator Material : PBT/Nylon-6T/LCP/Nylon-6T(H.F.),UL94V-0(Black)Finish : 0.6u" Gold plated on contact area/10u" Gold plated on contact area/120u" Tin plated on contact area PDF Please write down your comment on this product, and click Add to Inquiry List for inquiry Add to Inquiry List Review Inquiry List Back
