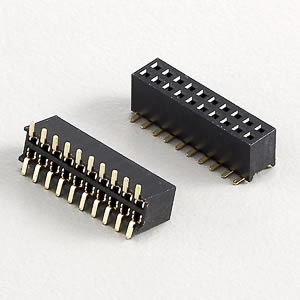

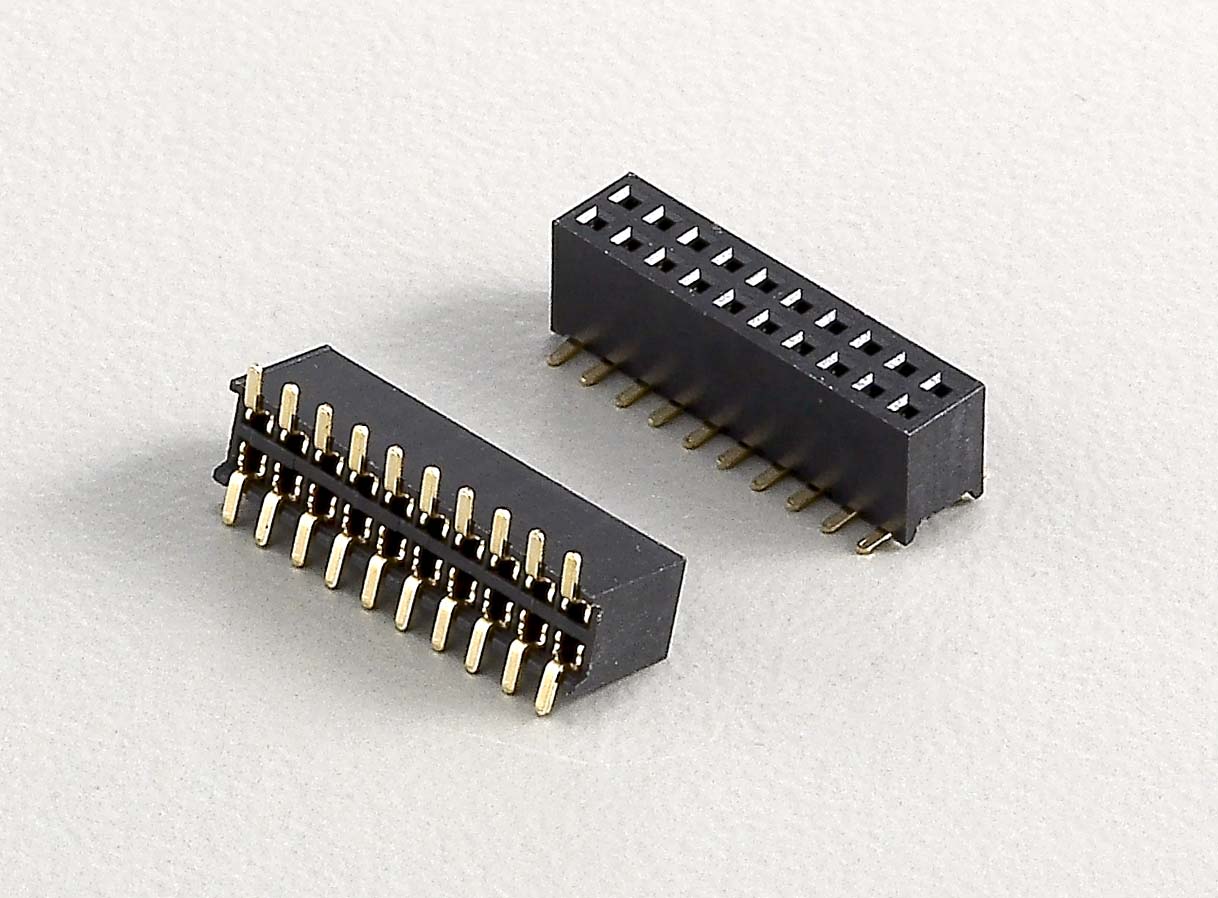

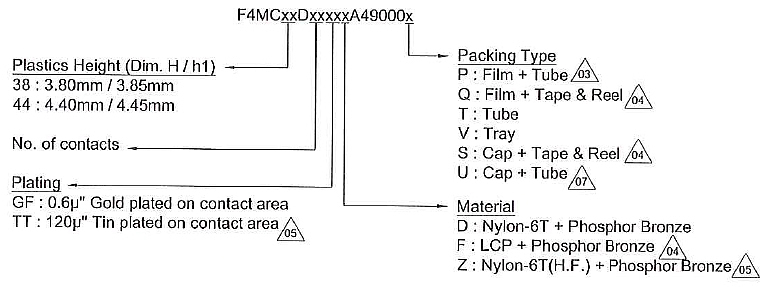

F4MCxxDxxxxxA49000x Female Header SMT / Dual Rows / Base Height 3.8mm

Specifications:

Current & Voltage Rating: 1A & 12Vac max.
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)/260±10℃ for 3~5 seconds(LCP)
Contact Material : Phosphor Bronze
Insulator Material : Nylon-6T/LCP/Nylon-6T(H.F.),UL94V-0(Black)
Cap Material : Nylon-9T, UL94V-0(Black)
Finish : 0.6u" Gold plated on contact area/120u" Tin plated on contact area
