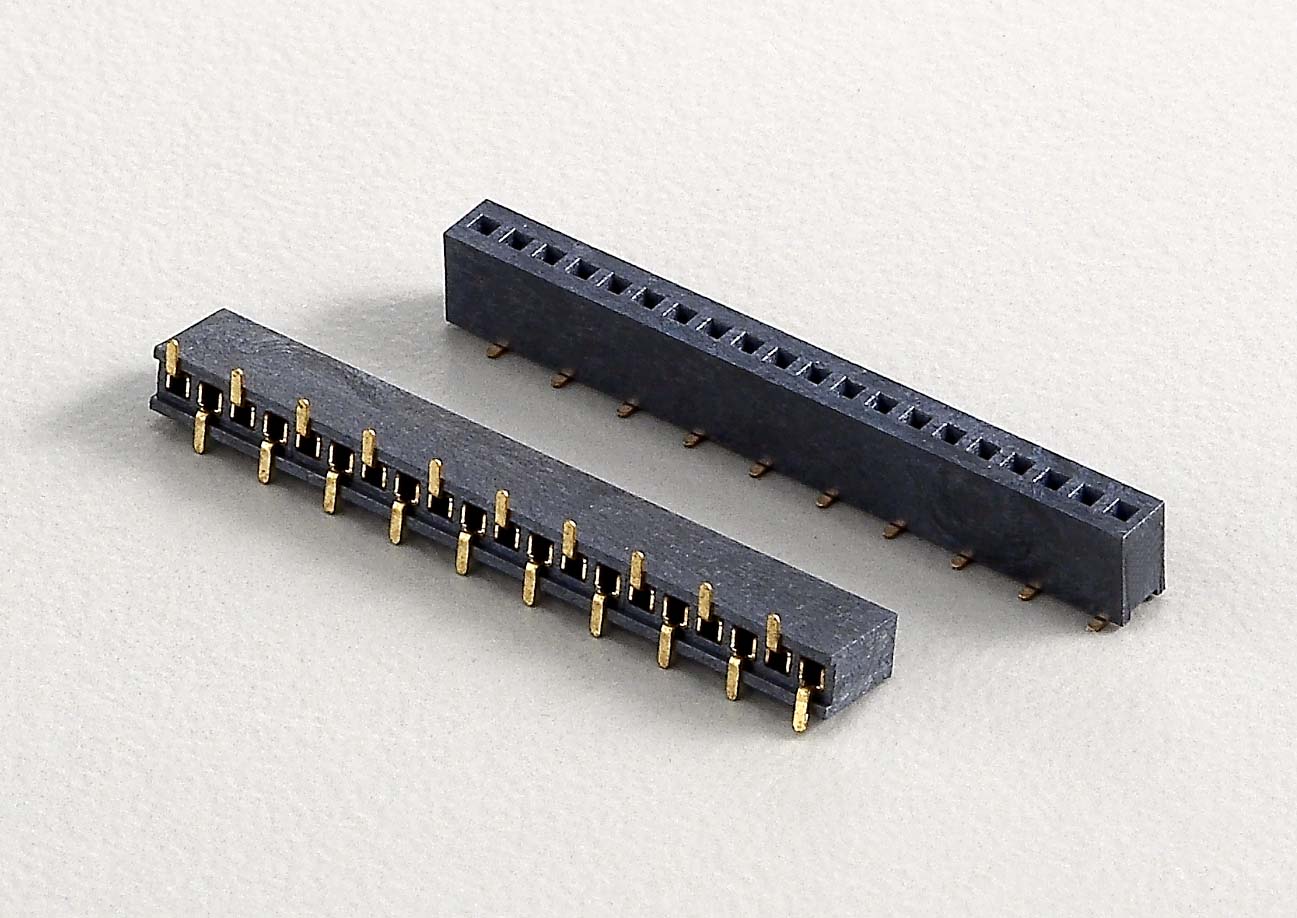

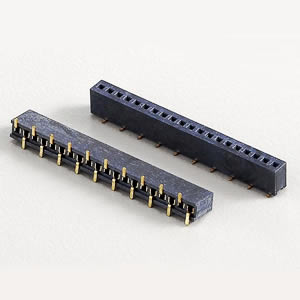

• F4MX34SxxGFFA35000x Female Header SMT / Single Row / Base Height 3.4mm
    F4MX34SxxGFFA35000x Female Header SMT / Single Row / Base Height 3.4mm

    F4MX34SxxGFFA35000x Female Header SMT / Single Row / Base Height 3.4mm

    Specifications:

    Current & Voltage Rating: 1A & 12Vac max.
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 500V
    Operating Temperature : -40℃~+105℃
    Contact Material : Phosphor Bronze
    Insulator Material : LCP
    Finish : 0.6u" Gold plated

    PDF
