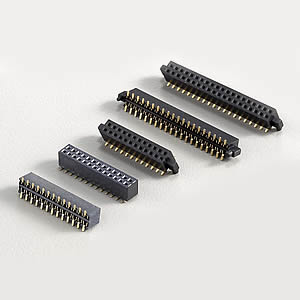

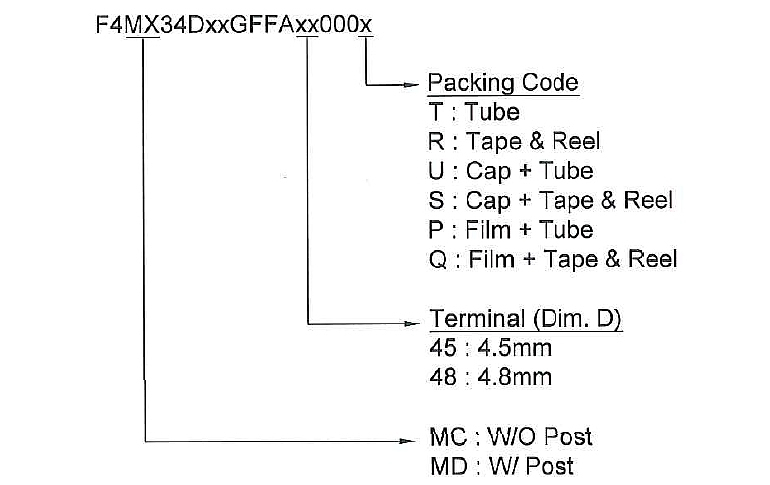

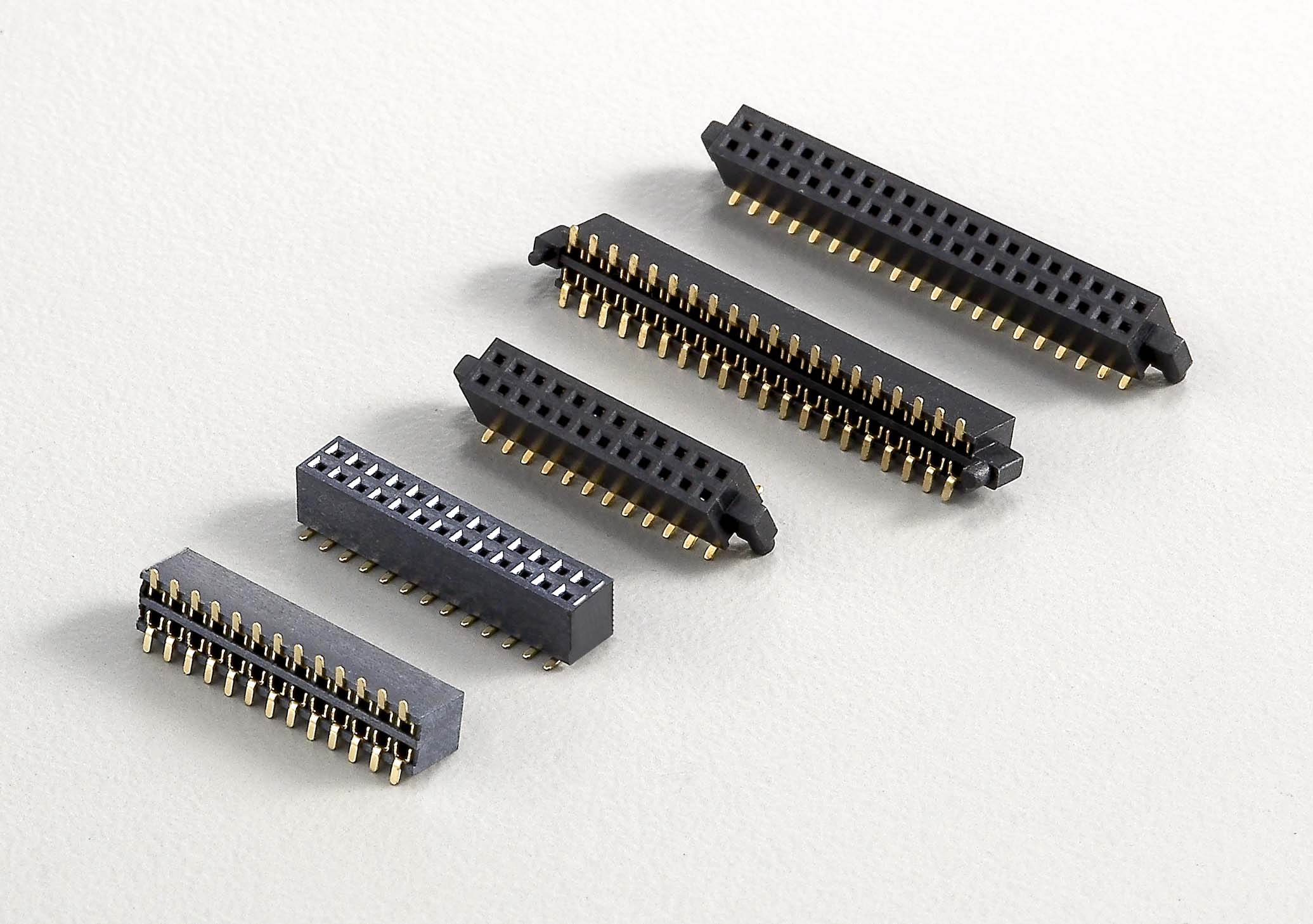

• F4MX34DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 3.4mm
    F4MX34DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 3.4mm

    F4MX34DxxGFFAxx000x Female Header SMT / Dual Rows / Base Height 3.4mm

    Specifications:

    Current & Voltage Rating: 1A & 12Vac max.
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 300V
    Operating Temperature : -40℃~+105℃
    Contact Material : Phosphor Bronze
    Insulator Material : LCP,UL94V-0(Black)
    Finish : 0.6u" Gold plated
