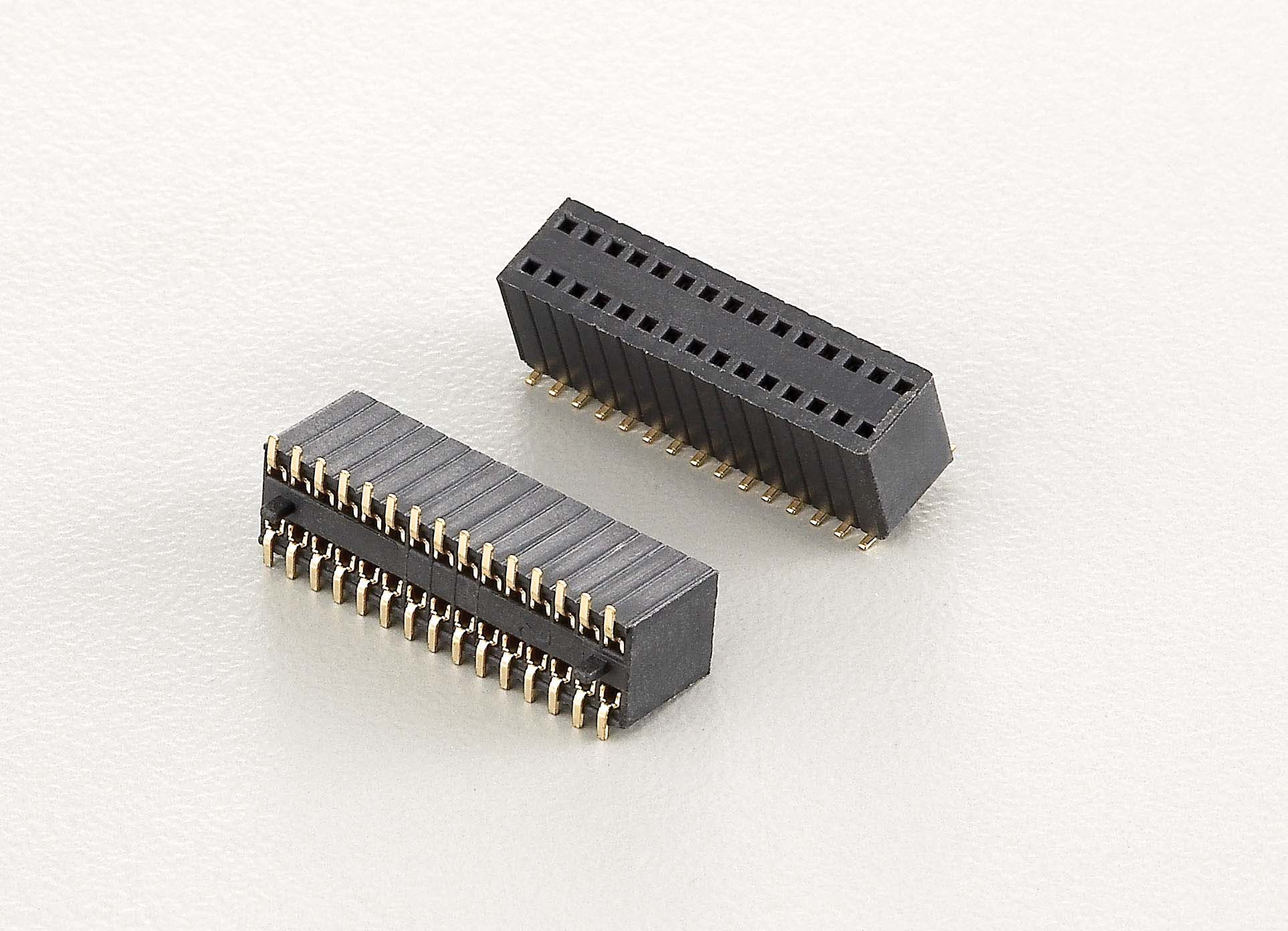

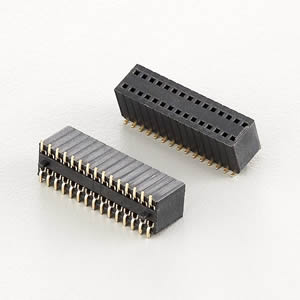

F3MD58DxxxxDA64001x Female Header SMT / Dual Rows /Base Height 5.8mm

Specifications:

 Current Rating: 1A
 Insulation Resistance: 1000 MΩ min.
 Contact Resistance: 20 mΩ max.
 Dielectric Withstanding : AC 500V
 Operating Temperature : -40℃~+105℃
 Max. Processing Temp. : 245±5℃ for 3~5 seconds
 Contact Material : Phosphor Bronze
 Insulator Material : Nylon-6T,UL94V-0(Black)

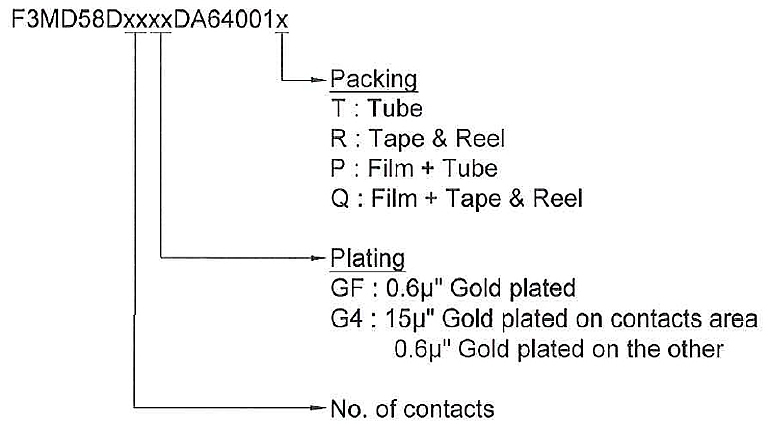

 Finish : See order information
