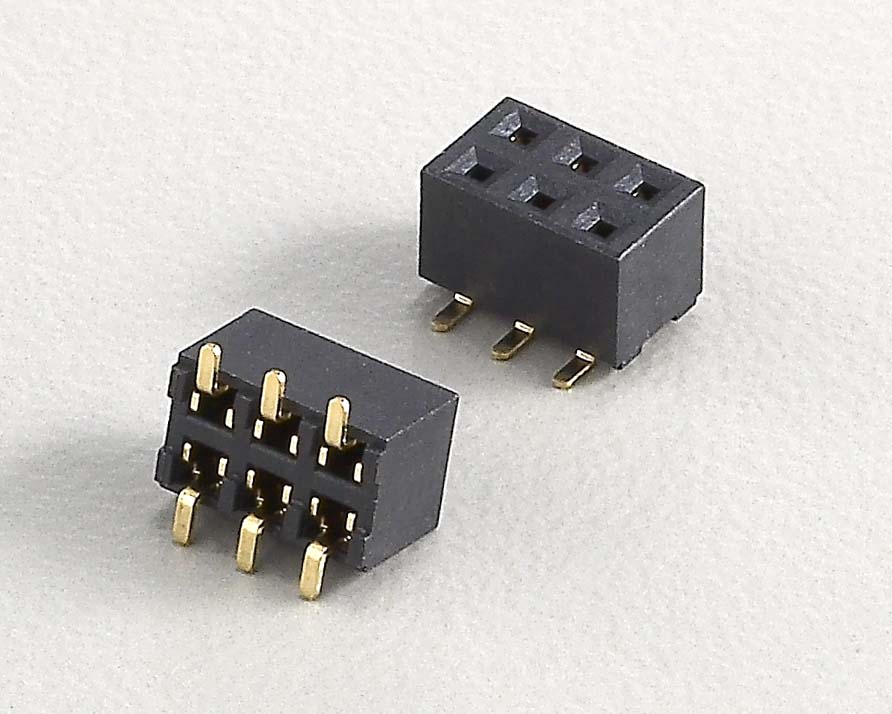

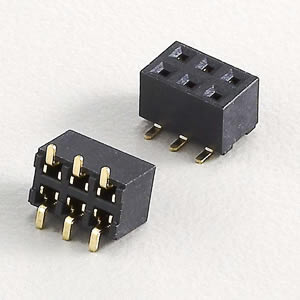

F2MC40DxxxxxA58000x Female Header SMT / Dual Rows / Base Height 4.0mm

Specifications:

Current & Voltage Rating: 2A & 20Vac max.
Insulation Resistance: 3000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 245±5℃ for 3~5 seconds
Contact Material : Phosphor Bronze
Insulator Material : Nylon-6T/Nylon-6T(H.F.),UL94V-0

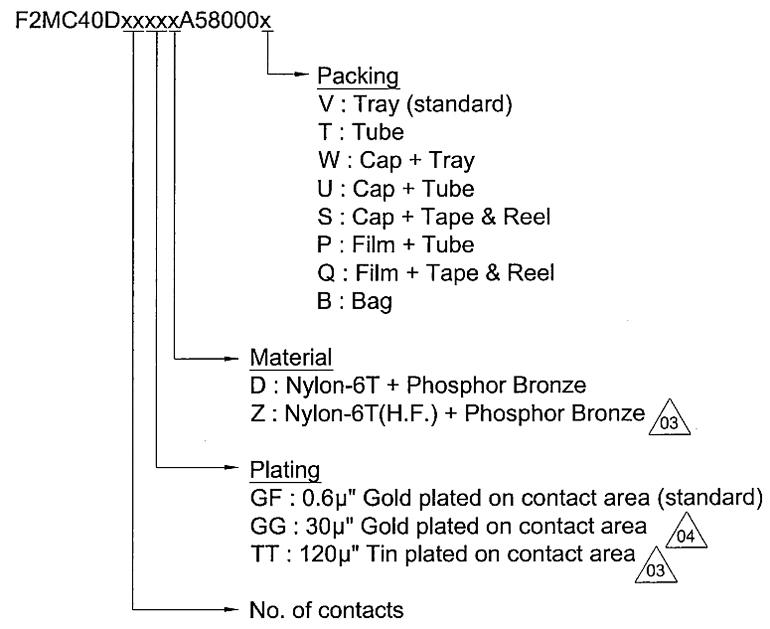

Finish : See order information
