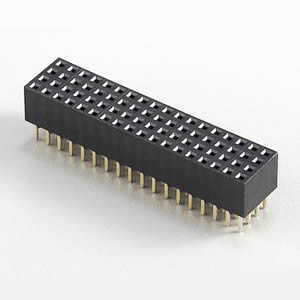

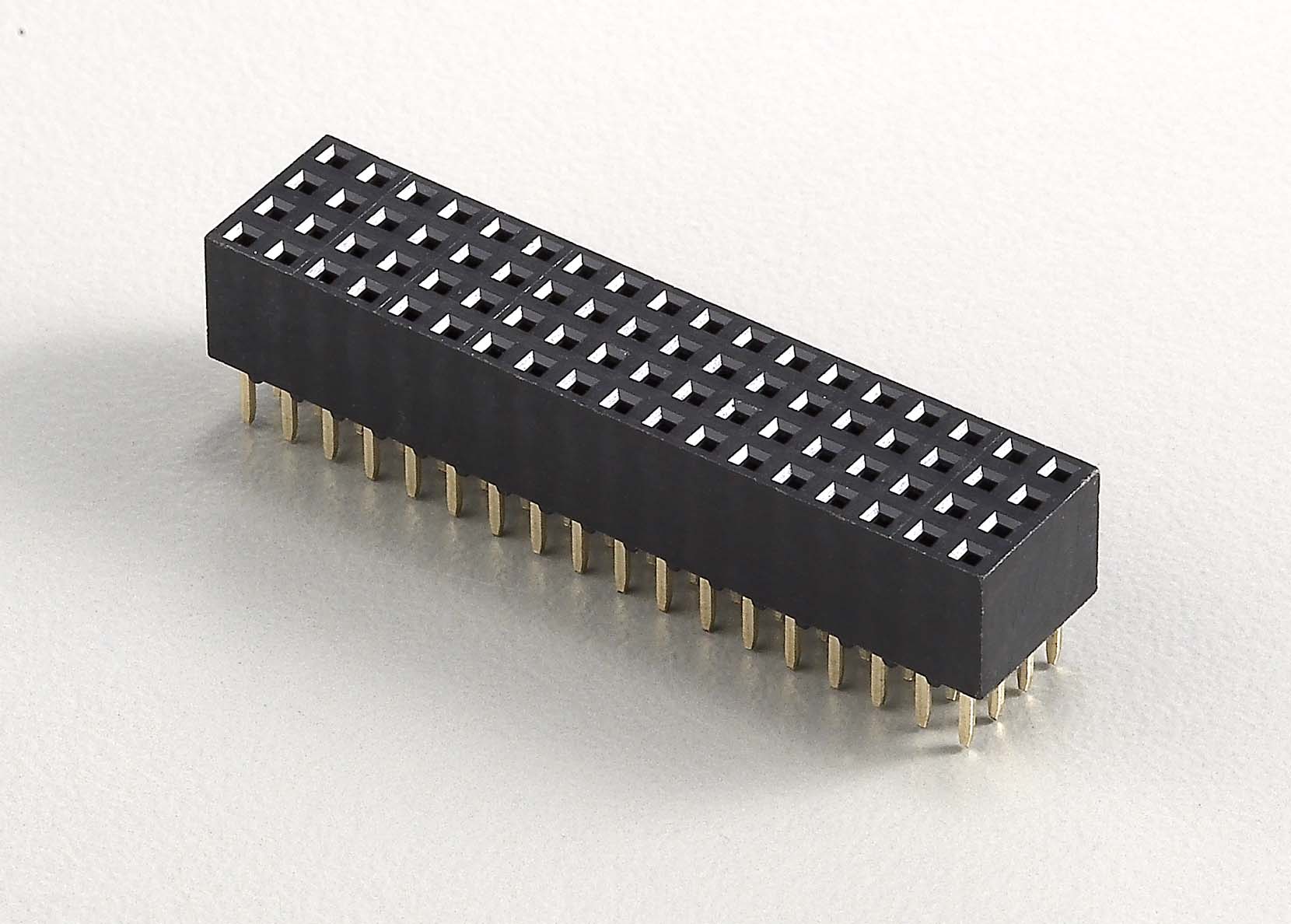

• F2SE64DxxxxxAxx000V Female Header Straight / Dual or Four Rows / Base Height 6.35mm
    F2SE64DxxxxxAxx000V Female Header Straight / Dual or Four Rows / Base Height 6.35mm

    F2SE64DxxxxxAxx000V Female Header Straight / Dual or Four Rows / Base Height 6.35mm

    Specifications:

    Current Rating: 2A
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 500V
    Operating Temperature : -40℃~+105℃
    Max. Processing Temp. : 245±5℃ for 3~5 seconds
    Contact Material : Phosphor Bronze
    Insulator Material : Nylon-6T/Nylon-6T(H.F.),UL94V-0(Black)

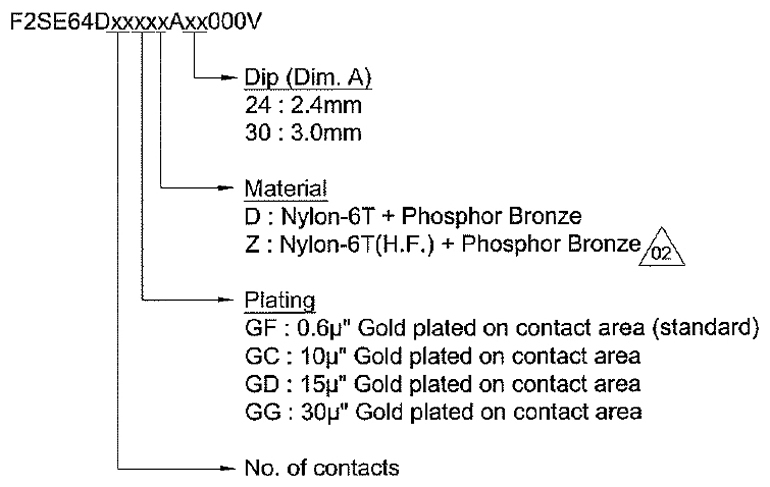

    Finish : See order information
    Packing : Tray
