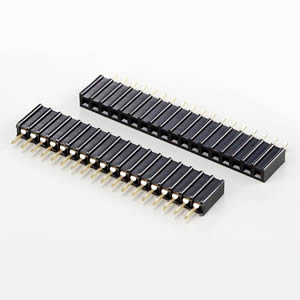

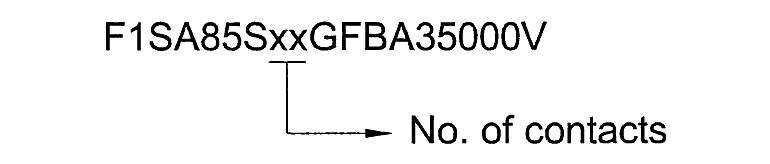

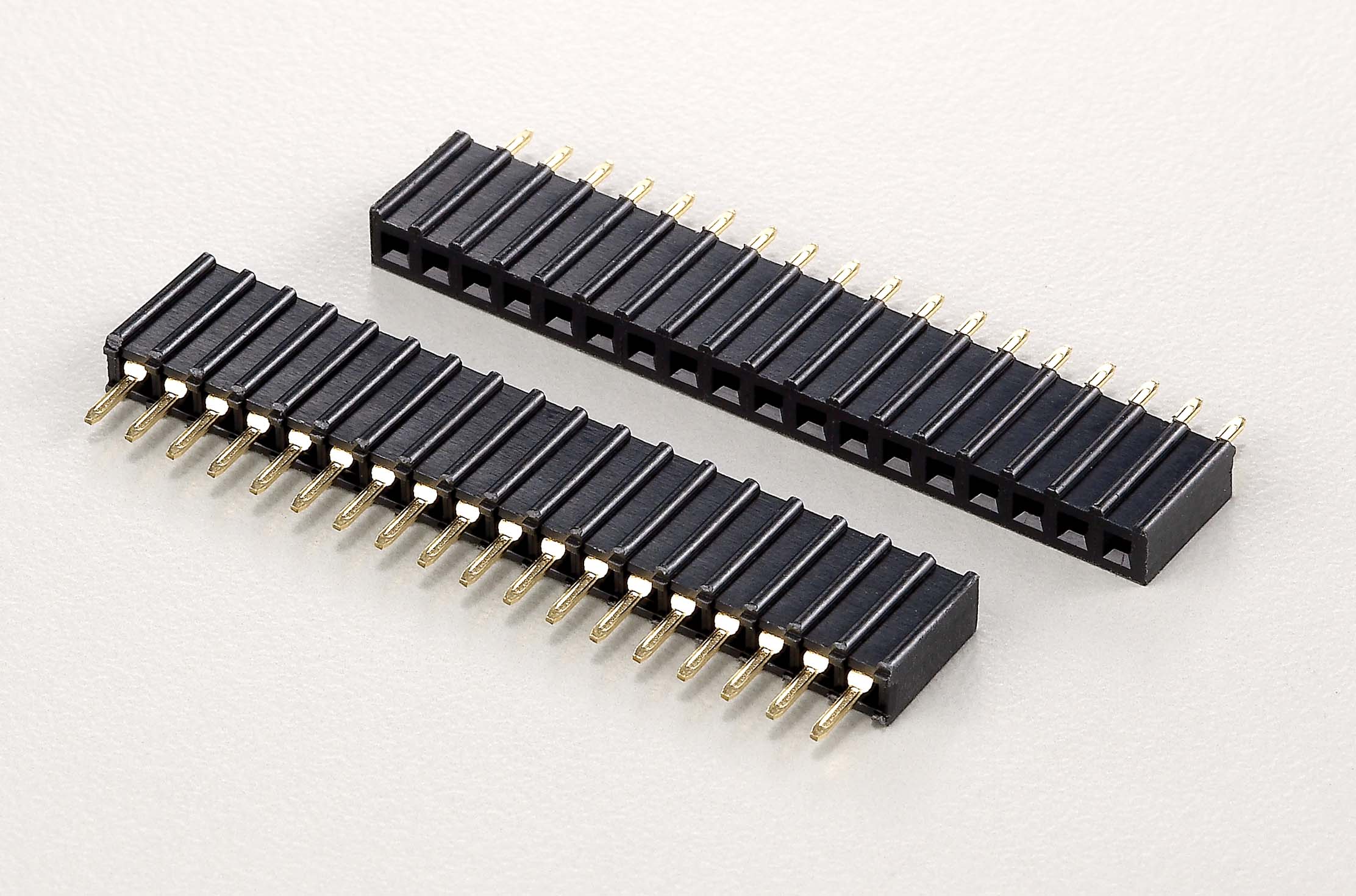

• F1SA85SxxGFBA35000V Female Header Straight / Single Row / Base Height 8.5mm
    F1SA85SxxGFBA35000V Female Header Straight / Single Row / Base Height 8.5mm F1SA85SxxGFBA35000V Female Header Straight / Single Row / Base Height 8.5mm

    F1SA85SxxGFBA35000V Female Header Straight / Single Row / Base Height 8.5mm

    Specifications:

    Current & Voltage Rating: 3A & 25Vac max.
    Insulation Resistance: 5000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 500V
    Operating Temperature : -25℃~+85℃
    Contact Material : Phosphor Bronze
    Insulator Material : PBT,UL94V-0(Black)
    Finish : 0.6u" Gold plated on contact area
    Packing : Tray
