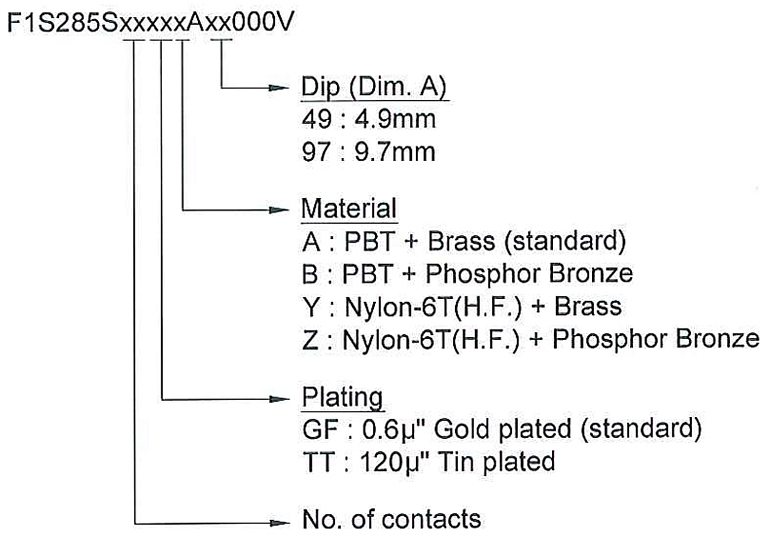

F1S285SxxxxxAxx000V Female Header Multiple Base

Specifications:

Current & Voltage Rating: 3A & 25Vac max.
Insulation Resistance: 5000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(NY6T)
Contact Material : Brass/Phosphor Bronze
Insulator Material : Polyester,UL94V-0/PBT/Nylon-6T(H.F.)
Finish : 0.6u" Gold plated on contact area
